Genesis 800 - Carbon Arc Gouging/Air Carbon Arc Cutting

APS Welding presents an extremely Rugged, Powerful and Productive Carbon Arc Gouging Machine. Genesis 800 power source weighs around 130 Kg and gets the toughest jobs done with ease.

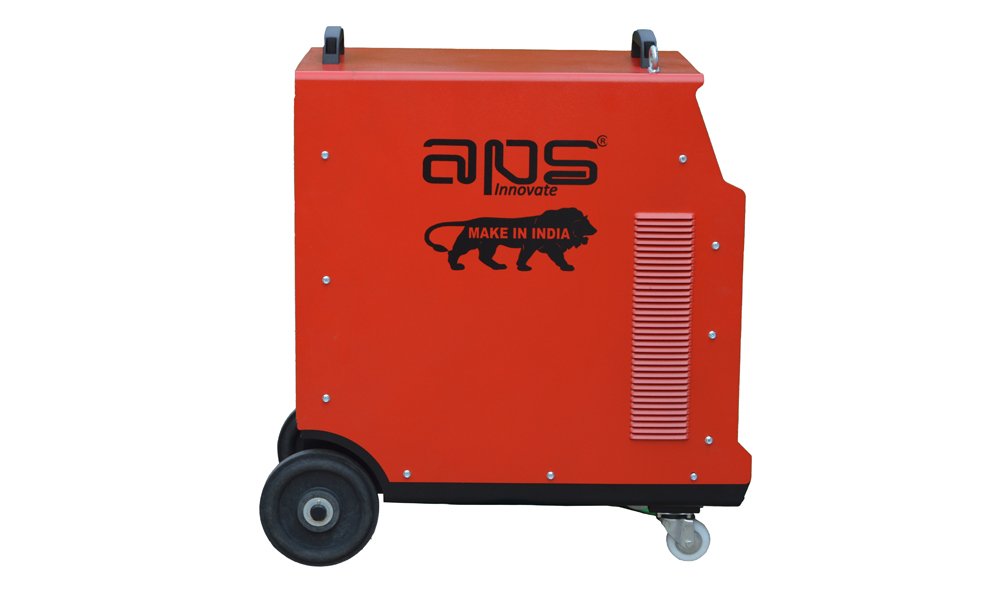

GENESIS 800- CAG WELDING MACHINE
GENESIS 800 WELDER - CAG
GENESIS 800 WELDING MACHINE- CARBONG ARC GOUGING MACHINE
GENESIS 800 WELDER - CAG
GENESIS 800 WELDING MACHINE- CAG
GENESIS 800 WELDER - AIR ARC GOUGING
GENESIS 800 WELDING MACHINE- AIR ARC GOUGING
GENESIS 800 WELDER - CAG
GENESIS 800 WELDING MACHINE- CARBONG ARC GOUGING MACHINE
GENESIS 800 WELDER - AIR ARC GOUGING
GENESIS 800 WELDING MACHINE- CARBONG ARC GOUGING MACHINE
GENESIS 800 WELDER - CAG

Quick Specs:

TECHNOLOGY:

MODULE IGBT based 20KHz Full Bridge Inverter Gouging Machine. Higher amperage  (Genesis 1000 and Genesis 1200) machines also available

TOP FEATURES:

  • Best for site conditions, thanks to wide input voltage range from 365VAC to 500VAC.
  • Easy portability, only 130 Kg weight.
  • Rugged capability, complete metal body.

QUICK SPECS

  • Input Voltage: 415VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 800Amp
  • Output Current @ 100%: 600Amp

PROCESS:

SMAW – Stick Welder, Gouging, DC Constant Current Power Source.

Download PDF
Request Quote

Technical Specifications:

Input Specifications:

  • Input Voltage: 415 VAC, 3Phase, 50/60Hz (330VAC to 500VAC)
  • Primary switching device: IGBT MODULE
  • Input KVA @ 800A: 50.6KVA
  • Input Cable: 4 core 10 sqmm with open leads, 4 meters

Output Specifications:

  • Output Current Range: 25 Amp to 800 Amps
  • Output Current @ 60% Duty Cycle: 800 Amps
  • Output Current @ 100% Duty Cycle: 600 Amps
  • Max Open Circuit Voltage: 85 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:780mm x W:670mm x H:915mm
  • Weight: 130 Kgs
  • Base: Wheels
  • Lifting Support: Handle

Standard Accessories:

  • Electrode Holder
  • EH60 Earthing Clamp
  • EC100Welding Cable
  • 70 sqm Gouging Torch

Order Codes:

  • Genesis 800 Power Source: APS-G800
  • Electrode Holder 600A with 3m 70sqmm cable: AEH600A3M70SQMM
  • Earthing Clamp 1000A with 3m 70sqmm cable: AEC1000A3M70SQMM
  • Remote 8m: APS-REM8M

Special Features:

  1. Skill of the welder plays a major role in Tube-to-Tube welding applications. TIG welding process also requires more skill compared to other welding processes.
  2. Weld quality is of utmost importance and it is time consuming process since the heat-input should be maintained throughout the process.
  3. Manual feeding of the filler metal may result in inconsistent feeding which may lead to weld defects.

Other Details:

SUITABLE FOR:

  • Industrial Purpose – Construction, Railway, Foundry, Fabrication, Transportation Equipment, Ship Building, Heavy Machinery
  • Heavy Duty Welding/Gouging, High Power Delivering
  • Maintenance & Repair Works
  • Customizing & Restoration Welding
  • With advanced protection features such as Over Temperature Protection, Over Current Protection, 3 Phase Supply Protection, machine is designed to have more life and sustains all the wear and tear.
  • Machine also includes welder safety protection by reducing the OCV during no load conditions, preventing shocks

WELDABLE MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel

ELECTRODE TYPE & DIAMETER:

  • CAG Electrode
  • 6.0 to 12.0 mm diameter rods

CUTTING DEPTH:

3.0 to 13 mm

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
