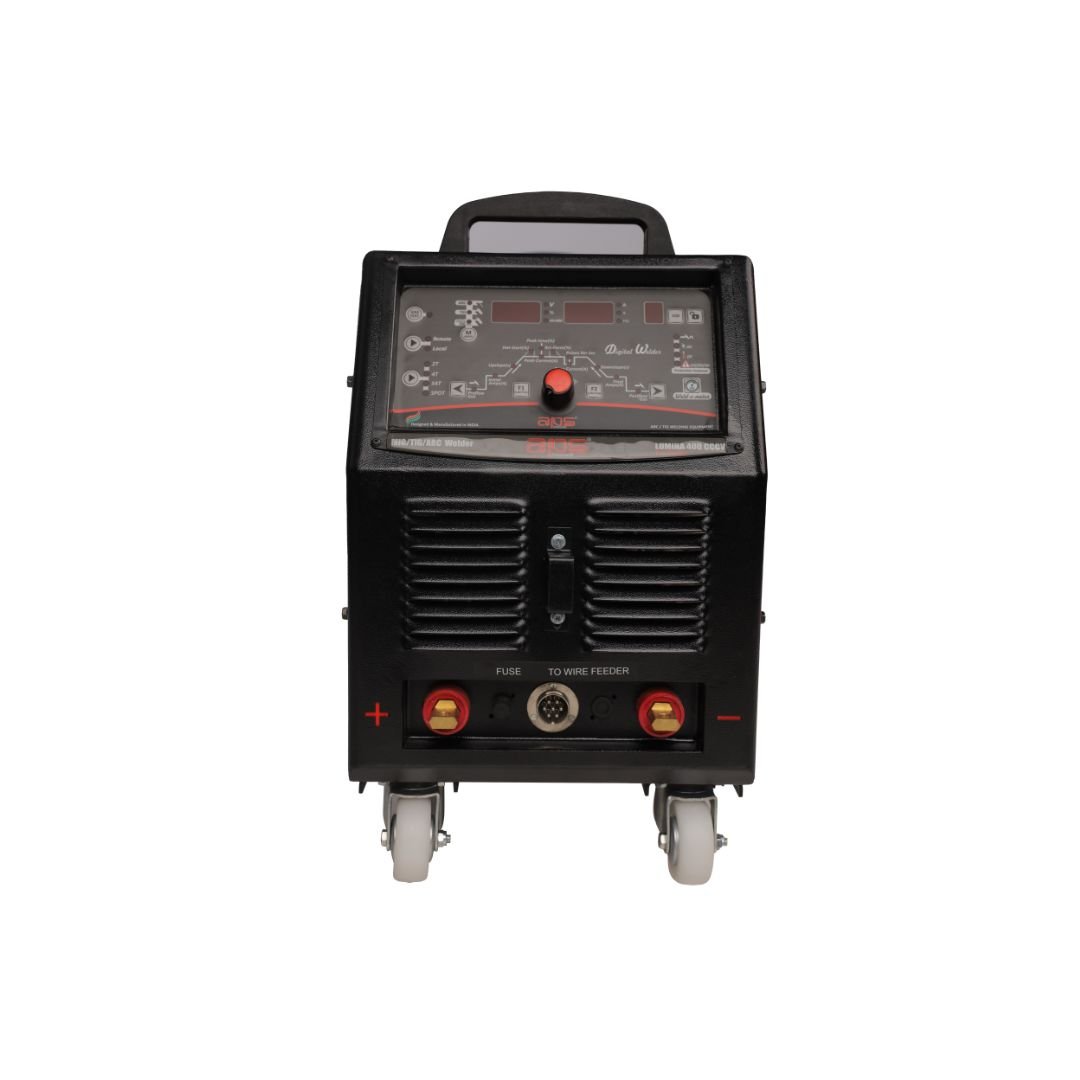

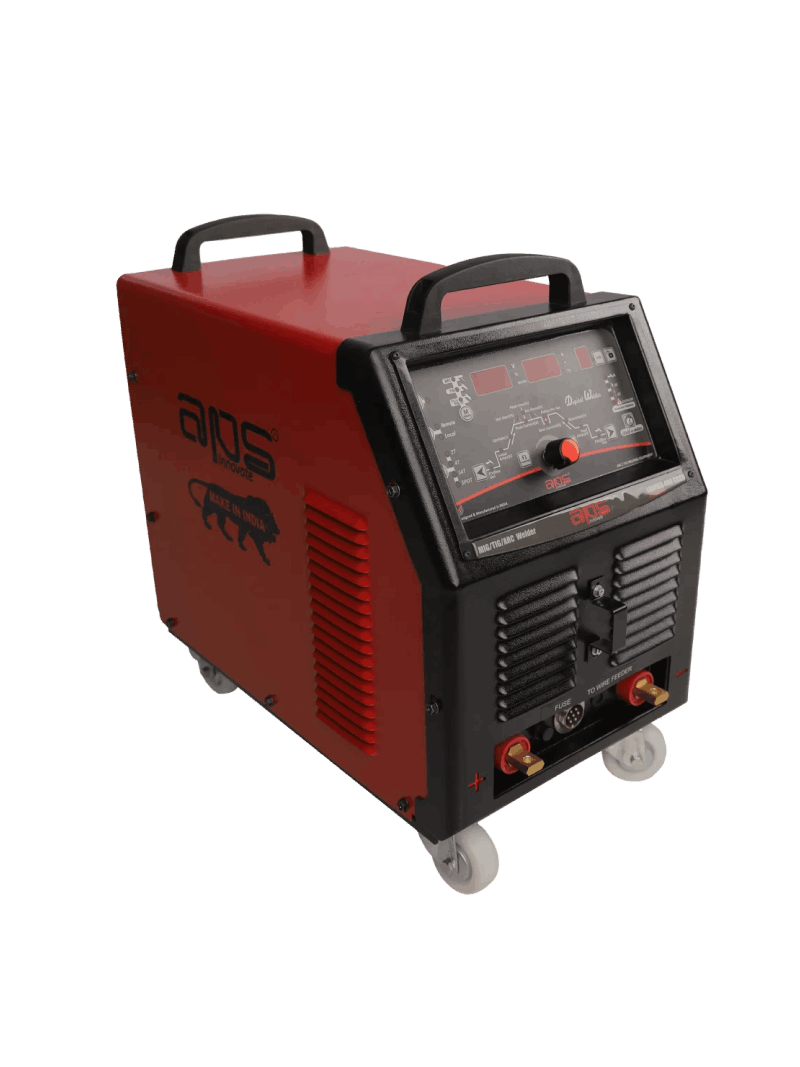

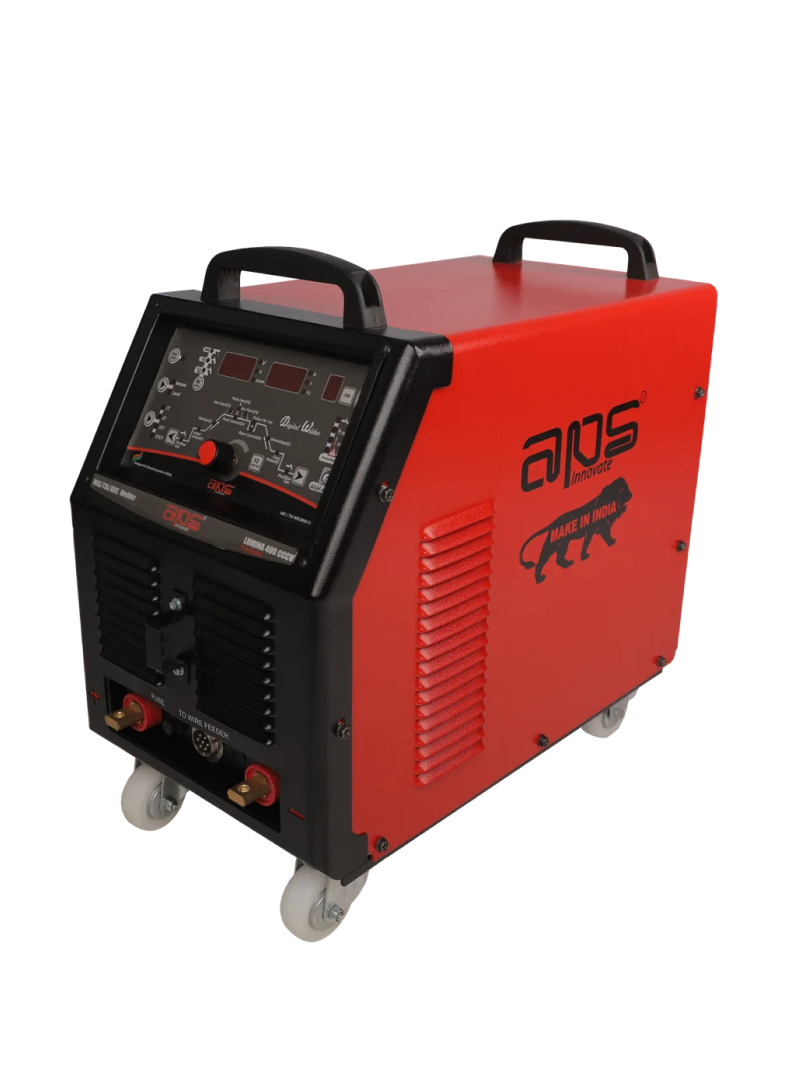

Lumina 400CCCV - MIG / TIG / ARC Welder (3 in 1 welding machine)

Lumina 400CCCV is a Multi-process(3 in 1 Welding machine) CCCV welding machine. This 400 amp(commonly referred as  CO2 welding machine) is a heavy-duty beast that can perform ARC/MMA Welding, TIG and MIG/MAG/GMAW Welding operations with easy, ensuring high-quality weld output. Powered with MODULE IGBT inverter technology, this digicon powered digital welding machine is extremely precise with output tolerance of welding parameters that are well within +/-1% tolerance ranges. The most unique feature of LUMINA series is its in-built HF unit, which helps you in doing hassle free TIG welding. Additionally WELDOMETER measures your weld-hours, helping you in keeping track of machine and welder performance. Lumina series is also available in 600Amps for heavier weld jobs.

Quick Specs:

TECHNOLOGY:

MODULE IGBT based 20KHz Full Bridge Inverter Welding Machine.

TOP FEATURES:

  • Heavy duty, Production machine with continuous Duty Cycle.
  • Easy portability, only 32 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 415VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 400Amp
  • Output Current @ 100%: 310Amp

PROCESS:

GMAW – MIG, MAG, DC Constant Voltage Power Source.

SMAW – Stick Welder, DC Constant Current Power Source.

TIG – Tungsten Inert Gas Welder, DC Constant Current Welding Power source.

Lumina 400CCCV Features:

– Inbuilt Protections: Input Supply protections from Under Voltage, Over Voltage, Phase loss protection, Internal Over Temperature Protection, IGBT Over Current / Short Circuit protection.

– Antistick Technology: Prevents the Wire electrode from sticking to the JOB at the end of weld. Also called as Burnback.

– Electronic Inductance: Adjustable Inductance, to achieve smooth as well as rough arc characteristic as per choice of the welder.

– Crater Weld Setting: Crater Voltage and Crater Current adjustable, and can be triggered from MIG Torch itself.

– ArcForce & HotStart: Arc Force and Hot Start features in ARC Welding mode, helping out of position welding and starting arc in dirty metal.

Inbuilt HF unit: The machine includes an inbuilt High Frequency(HF) unit providing smooth starts to TIG welding jobs.

Preflow Gas: Preflow gas flow time can be set to ensure smooth start of welding, both in TIG and MIG welding.

Gas Test: Gas Test allows you to check gas output before starting your actual welding, to avoid reworks and welding defects

Slow Start Level: This feature helps you avoid ball formation on initial blast when the MIG wire first touches the job by controlling the feed speed, thus reduces the rework.

Weld-o-meter: Measures and stores the welding hours, thus keeping a track of machine as well as welder performance.

2T, 4T and S4T Modes: Machine torches can be operated in various modes as per welder convenience

MIG Trolley: Lumina MIG trolley is one of its kind, helps in free movement of the equipment. Loading and unloading of gas cylinder becomes a one man job with this Trolley

Technical Specifications:

Input Specifications:

  • Input Voltage: 415 VAC, 3Phase, 50/60Hz (365VAC to 500VAC)
  • Primary switching device: IGBT MODULE
  • Input KVA @ 400A: 16.8KVA
  • Input Cable: 4 core 6 sqmm with open leads, 4 meters

Output Specifications:

  • Output Current Range: 10 Amp to 600 Amps
  • Output Current @ 60% Duty Cycle: 400 Amps
  • Output Current @ 100% Duty Cycle: 310 Amps
  • Max Open Circuit Voltage: 85 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:545mm x W:310mm x H:595mm
  • Weight: 32 Kgs
  • Base: Wheels
  • Lifting Support: Handle

Other Details:

SUITABLE FOR:

  • Production Units / Manufacturing Units
  • Welding of thick metal parts like boilers, cranes, beams
  • Structural Steel welding / Heavy Engineering
  • Earth moving equipment manufacturers
  • Ship Building / Construction
  • Rail Car Manufacturing

WELDABLE MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel
  • Aluminium
  • Speciality Metals

ELECTRODE TYPE & DIAMETER:

  • Mig Wire 0.8 to 1.6mm,
  • Stick Electrode 6013, 7018 of Dia 2.0 to 4.0mm

STANDARD ACCESSORIES:

  • Welding MIG Torch: 36KDHD
  • Earthing Clamp with 35Sqmm 3mtr Cable
  • Preheater, CO2 Regulator, Flowmeter
OPTIONAL ACCESSORIES:
  • Argon Regulator
  • Aluminium Welding MIG Torch
  • Roller and Liners for Aluminium Welding

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
