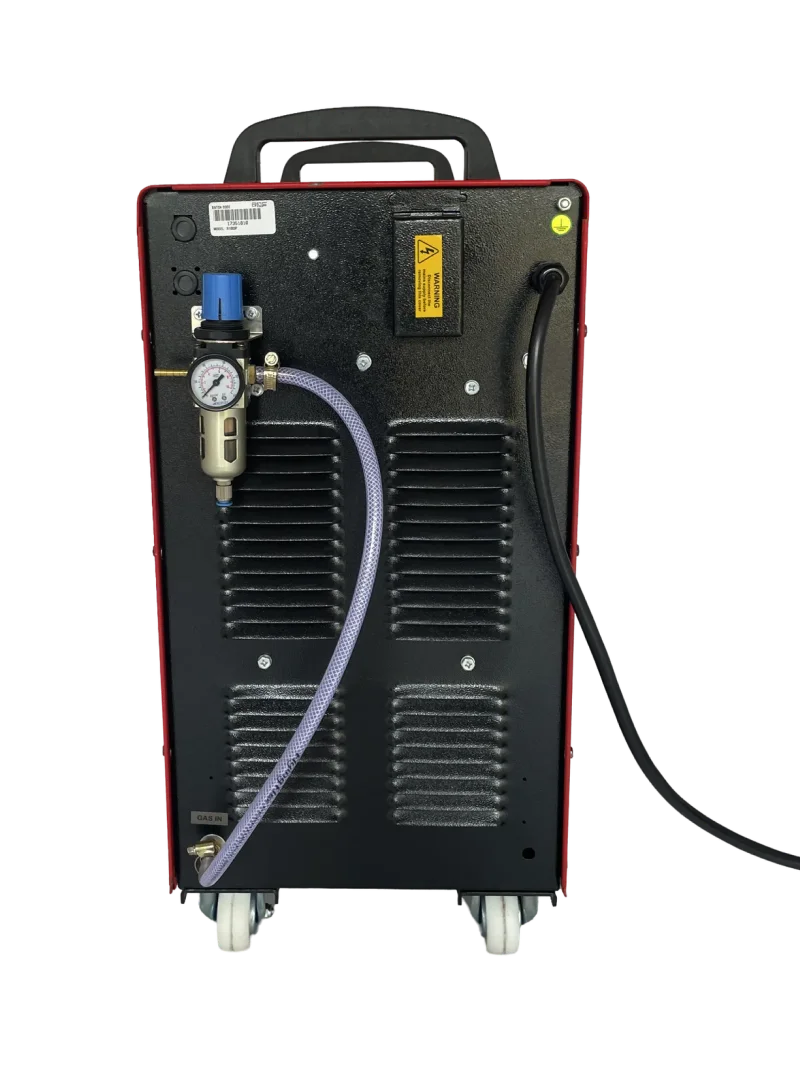

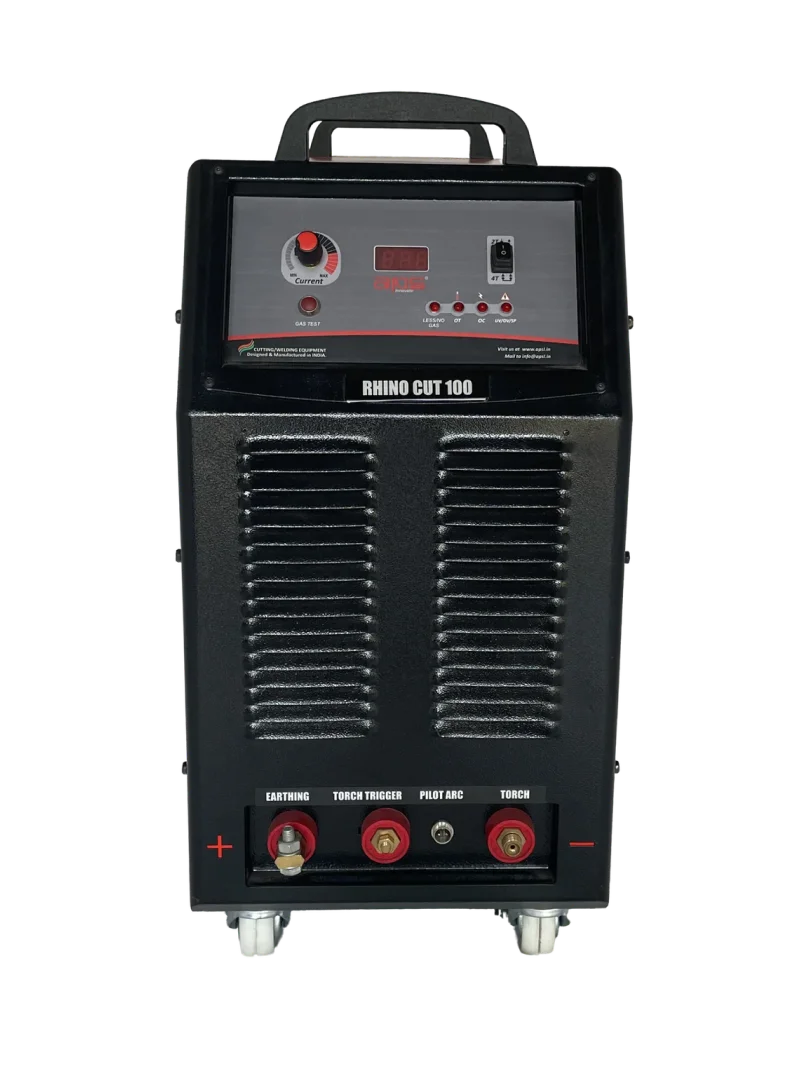

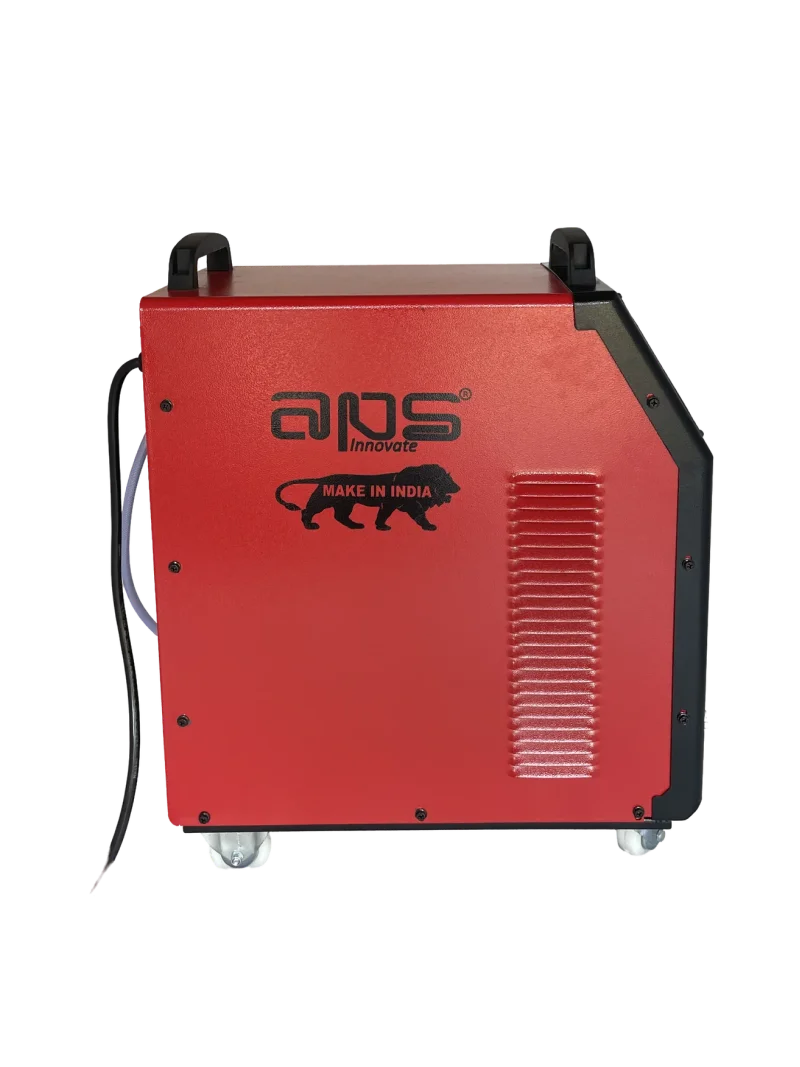

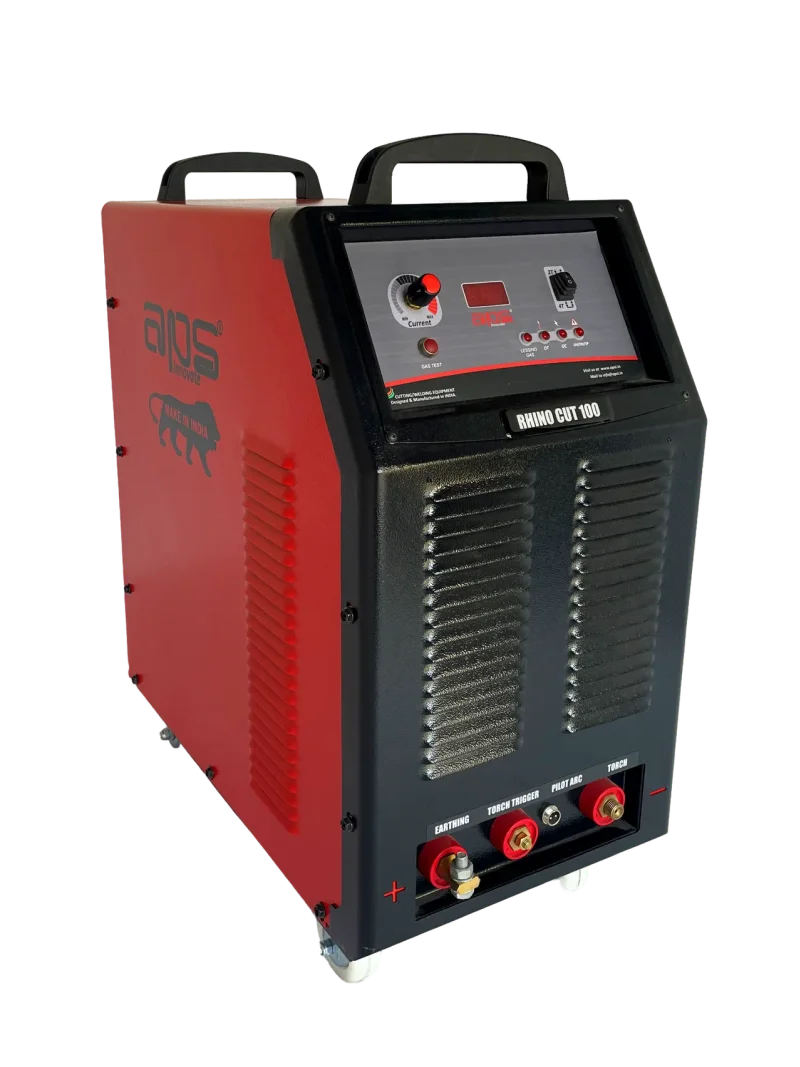

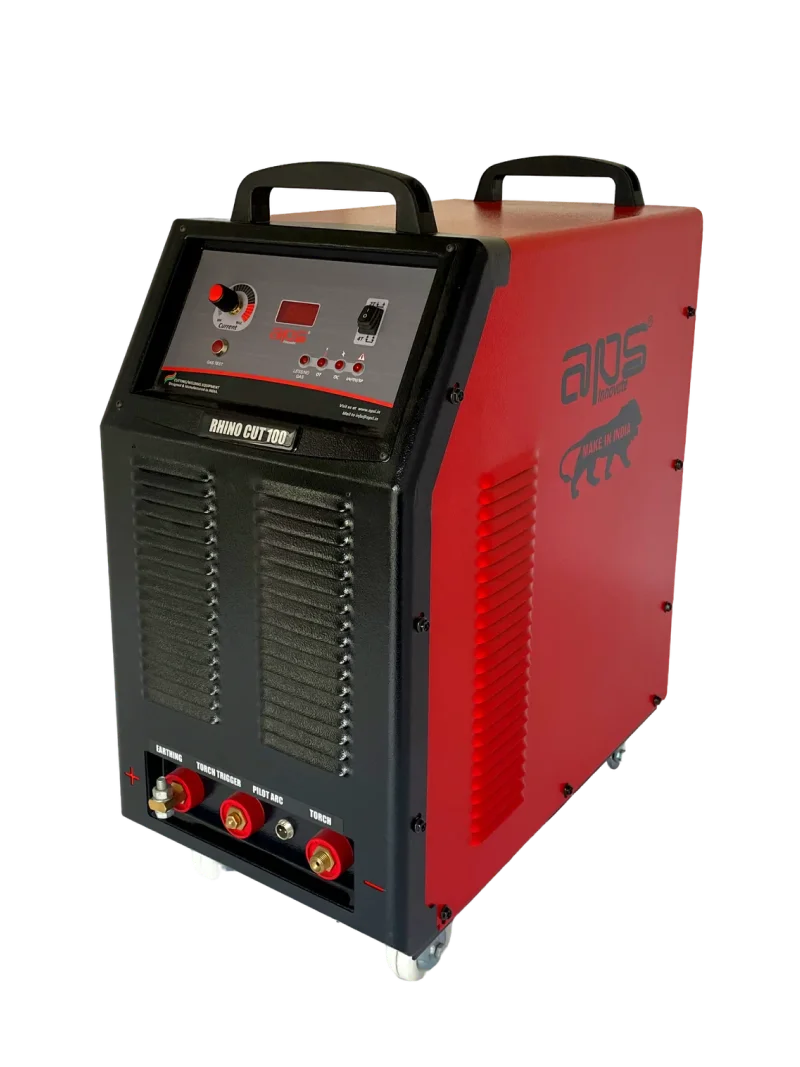

RHINO CUT 100 - AIR PLASMA CUTTING

APS Welding presents RHINO CUT 100 CUTTING machine. This 100Amp heavy duty beast can perform cutting of upto 25mm thick metal.

Quick Specs:

TECHNOLOGY:Microprocessor controller IGBT Inverter Technology.

TOP FEATURES:

  • Heavy duty, Production machine with continuous Duty Cycle.
  • Easy portability, only 45 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 360VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 100Amp
  • Output Current @ 100%: 77Amp

CUTTING THICKNESS:

  • Clean Cut:   20mm
  • Coarse Cut: 25mm

Features:

– Inbuilt Protections: Input Supply protections from Under Voltage, Over Voltage, Phase loss protection, Internal Over Temperature Protection, IGBT Over Current / Short Circuit protection.

– Inbuilt Pilot ARC Start: Enables to start cutting without touching the job.

Gas Test: To check the flow of Air prior to cutting

Technical Specifications:

Input Specifications:

  • Input Voltage: 415 VAC, 3Phase, 50/60Hz (330VAC to 500VAC)
  • Primary switching device: IGBT MODULE
  • Input KVA @ 100A: KVA
  • Input Cable: 4 core 4 sqmm with open leads, 4 meters

Output Specifications:

  • Output Current Range: 30 Amp to 100 Amps
  • Output Current @ 60% Duty Cycle: 100 Amps
  • Output Current @ 100% Duty Cycle: 77 Amps
  • Max Open Circuit Voltage: 325 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:590mm x W:340mm x H:690mm
  • Weight: 45 Kgs
  • Base: Wheels
  • Lifting Support: Handle

Other Details:

SUITABLE FOR:

  • Production Units / Manufacturing Units
  • Welding of thick metal parts like boilers, cranes, beams
  • Structural Steel welding / Heavy Engineering
  • Earth moving equipment manufacturers
  • Ship Building / Construction
  • Rail Car Manufacturing

CUTTING MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel
  • Aluminium
  • Speciality Metals

ELECTRODE TYPE & DIAMETER:

  •
  •

STANDARD ACCESSORIES:

  • AIR Coole Torch
  • Earthing Clamp with  3mtr Cable 16Sqmm
  • Electrode and Nozzel

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
