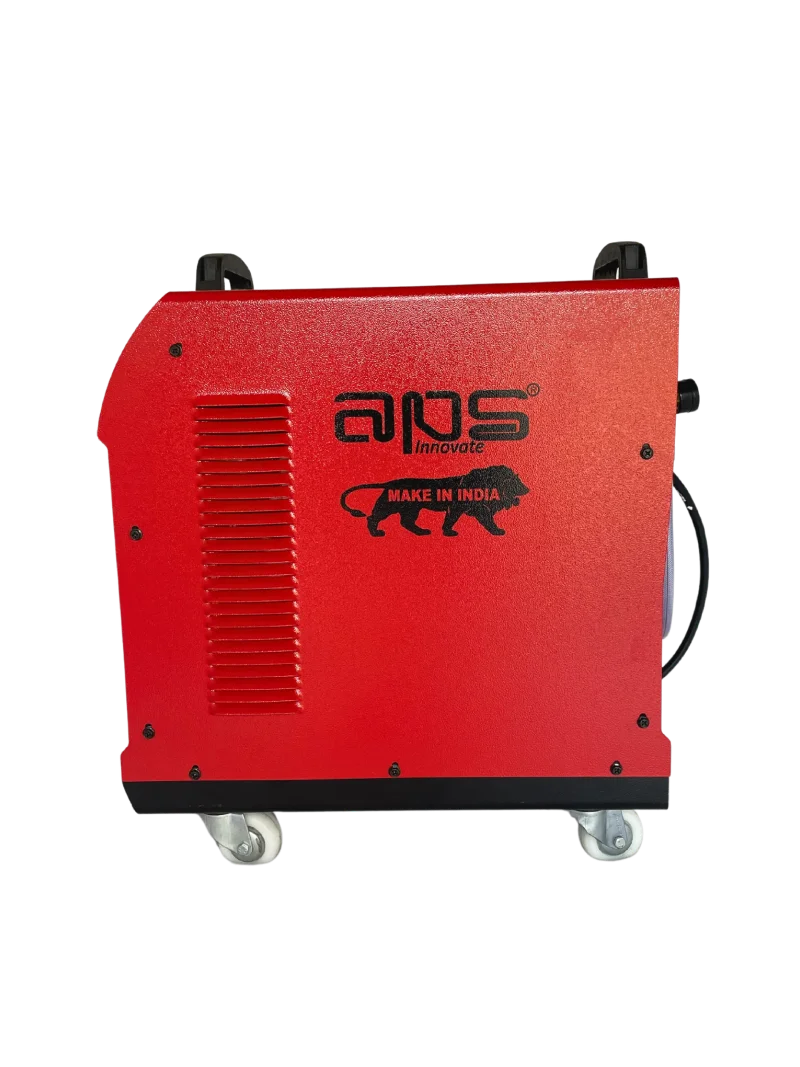

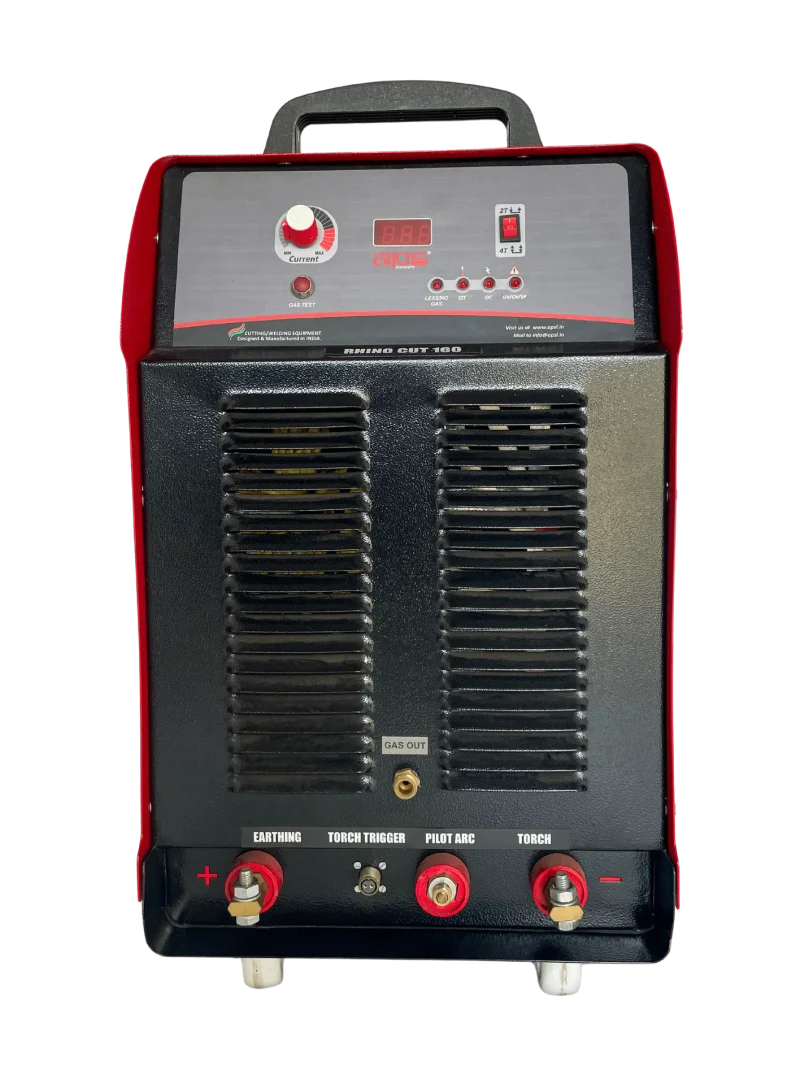

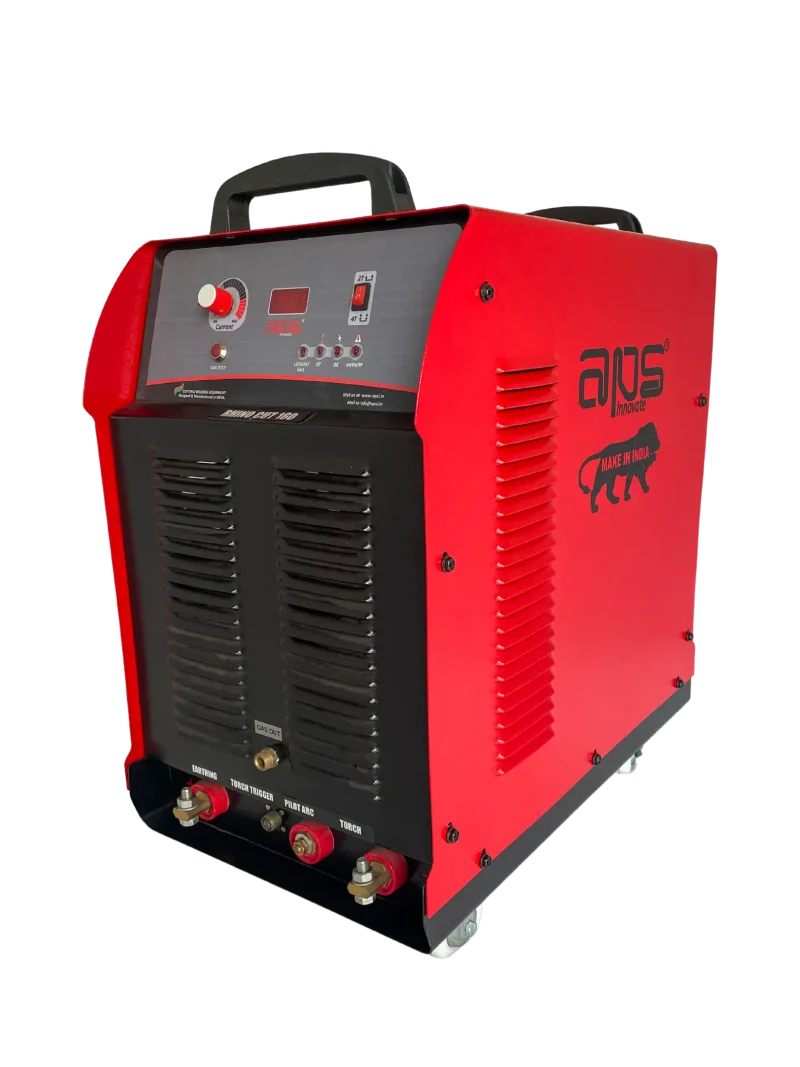

RHINO CUT 160 - AIR PLASMA CUTTING
APS Welding presents RHINO CUT 160 CUTTING machine. This 160Amp heavy duty beast can perform cutting of upto 57mm thick metal.
Quick Specs:
TECHNOLOGY:Microprocessor controller IGBT Inverter Technology.
TOP FEATURES:
- Heavy duty, Production machine with continuous Duty Cycle.
- Easy portability, only 57 Kg weight.
- Rugged capability, complete Metal Body.
QUICK SPECS
- Input Voltage: 360VAC, 3 Phase, 50/60Hz.
- Output Current @ 60%: 160Amp
- Output Current @ 100%: 124Amp
CUTTING THICKNESS:
- Clean Cut: 32mm
- Coarse Cut: 40mm
Features:
– Inbuilt Protections: Input Supply protections from Under Voltage, Over Voltage, Phase loss protection, Internal Over Temperature Protection, IGBT Over Current / Short Circuit protection.
– Inbuilt Pilot ARC Start: Enables to start cutting without touching the job.
– Gas Test: To check the flow of Air prior to cutting
Technical Specifications:
Input Specifications:
- Input Voltage: 415 VAC, 3Phase, 50/60Hz (330VAC to 500VAC)
- Primary switching device: IGBT MODULE
- Input KVA @ 160A: KVA
- Input Cable: 4 core 4 sqmm with open leads, 4 meters
Output Specifications:
- Output Current Range: 30 Amp to 160 Amps
- Output Current @ 60% Duty Cycle: 160 Amps
- Output Current @ 100% Duty Cycle: 124 Amps
- Max Open Circuit Voltage: 380 VDC
Other Specifications:
- Class of Ingress Protection: IP21
- Class of Insulation: Class H
- Type of cooling: Forced Air
Mechanical Specifications:
- Dimensions: L:590mm x W:340mm x H:690mm
- Weight: 57 Kgs
- Base: Wheels
- Lifting Support: Handle
Other Details:
SUITABLE FOR:
- Production Units / Manufacturing Units
- Welding of thick metal parts like boilers, cranes, beams
- Structural Steel welding / Heavy Engineering
- Earth moving equipment manufacturers
- Ship Building / Construction
- Rail Car Manufacturing
CUTTING MATERIALS:
- Steel, Mild Steel, Carbon Steel
- Stainless Steel
- Aluminium
- Speciality Metals
STANDARD ACCESSORIES:
- AIR Coole Torch
- Earthing Clamp 400Amp with 3mtr Cable 25Sqmm
- Electrode and Nozzel
NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
