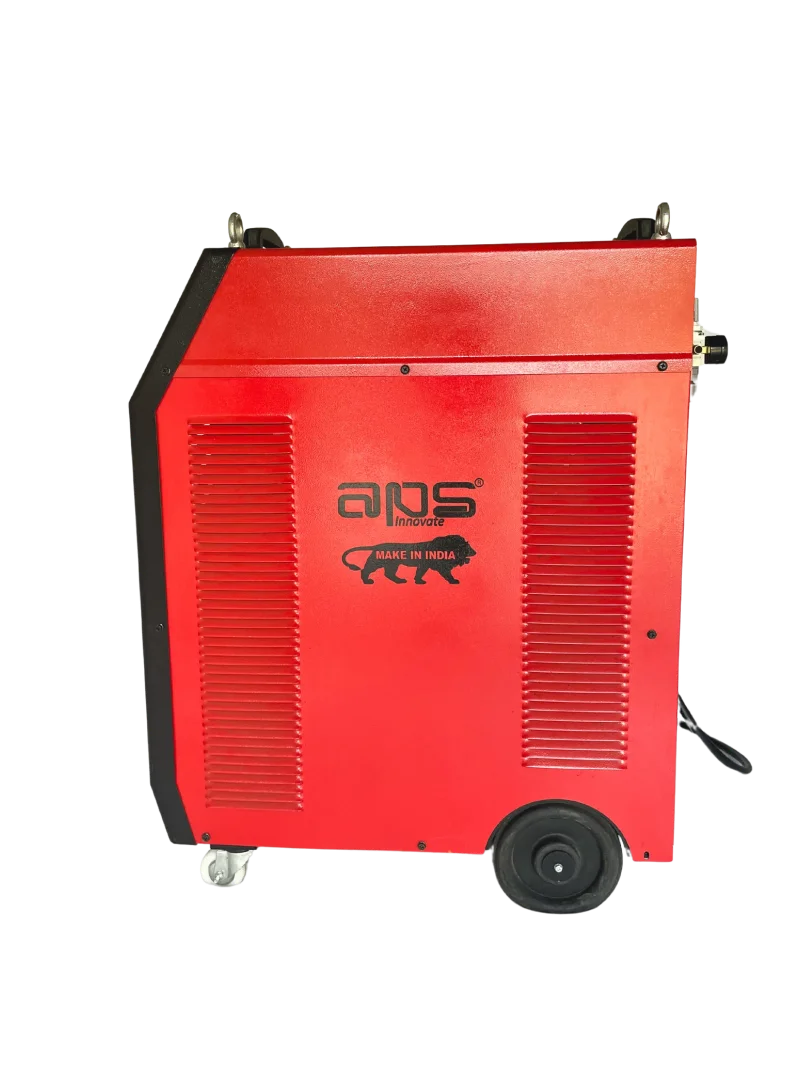

RHINO CUT 300 - AIR PLASMA CUTTING

APS Welding presents RHINO CUT 300 Welding Machine. This 300Amp heavy-duty beast can perform cutting of up to 114mm thick metal.

Quick Specs:

TECHNOLOGY:Microprocessor controller IGBT Inverter Technology.

TOP FEATURES:

  • Heavy duty, Production machine with continuous Duty Cycle.
  • Easy portability, only 125 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 360VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 300Amp
  • Output Current @ 100%: 231Amp

CUTTING THICKNESS:

  • Clean Cut:   40mm
  • Coarse Cut: 60mm

Features:

– Inbuilt Protections: Input Supply protections from Under Voltage, Over Voltage, Phase loss protection, Internal Over Temperature Protection, IGBT Over Current / Short Circuit protection.

– Inbuilt Pilot ARC Start: Enables to start cutting without touching the job.

Gas Test: To check the flow of Air prior to cutting

Technical Specifications:

Input Specifications:

  • Input Voltage: 415 VAC, 3Phase, 50/60Hz (330VAC to 500VAC)
  • Primary switching device: IGBT MODULE
  • Input KVA @ 160A: KVA
  • Input Cable: 4 core 10 sqmm with open leads, 4 meters

Output Specifications:

  • Output Current Range: 30 Amp to 300 Amps
  • Output Current @ 60% Duty Cycle: 300 Amps
  • Output Current @ 100% Duty Cycle: 231 Amps
  • Max Open Circuit Voltage: 440 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:460mm x W:1100mm x H:1170mm
  • Weight: 125 Kgs
  • Base: Wheels
  • Lifting Support: Handle

Other Details:

SUITABLE FOR:

  • Production Units / Manufacturing Units
  • Cutting of thick metal parts like boilers, cranes, beams
  • Structural Steel welding / Heavy Engineering
  • Earth moving equipment manufacturers
  • Ship Building / Construction
  • Rail Car Manufacturing

CUTTING MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel
  • Aluminium
  • Speciality Metals

STANDARD ACCESSORIES:

  • AIR Cooled Torch
  • Earthing Clamp 400Amp with  3mtr Cable 35Sqmm
  • Electrode and Nozzel


NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
