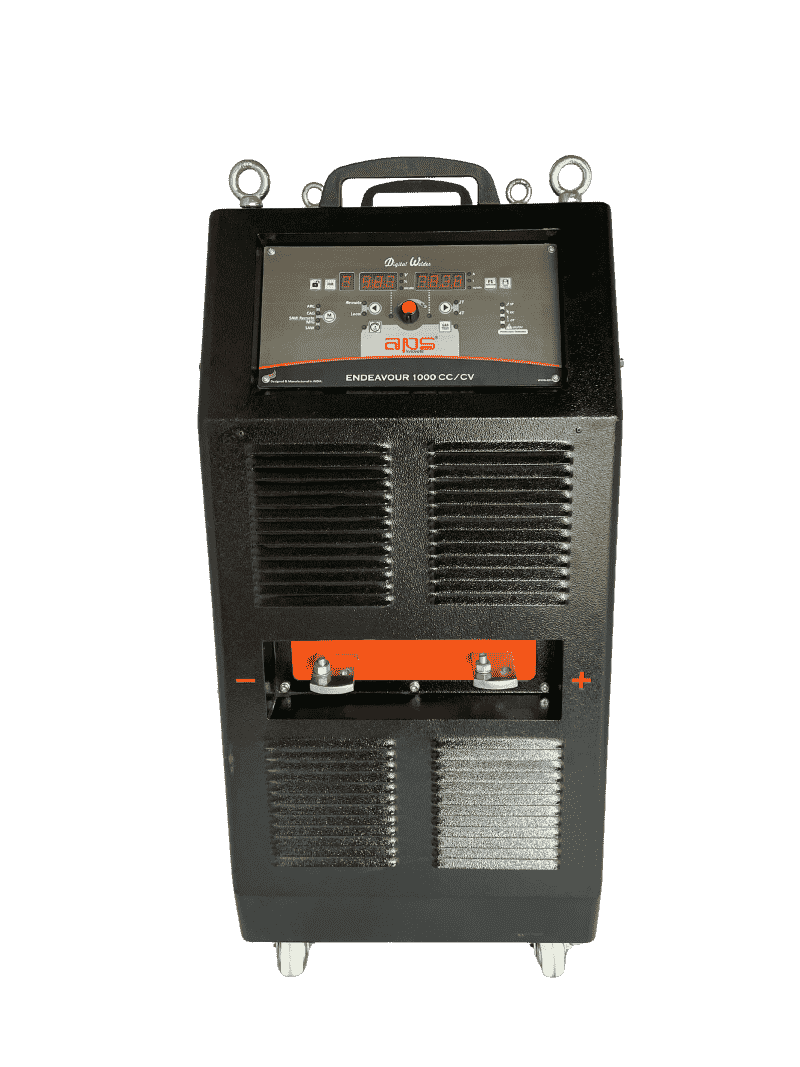

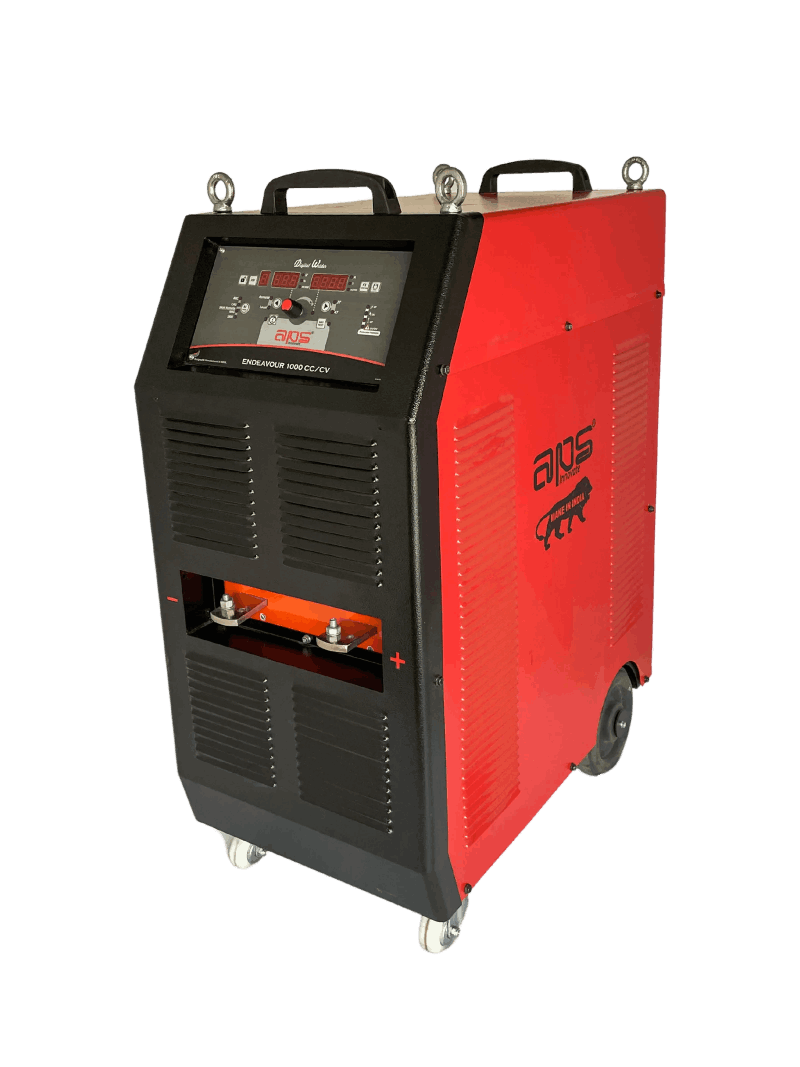

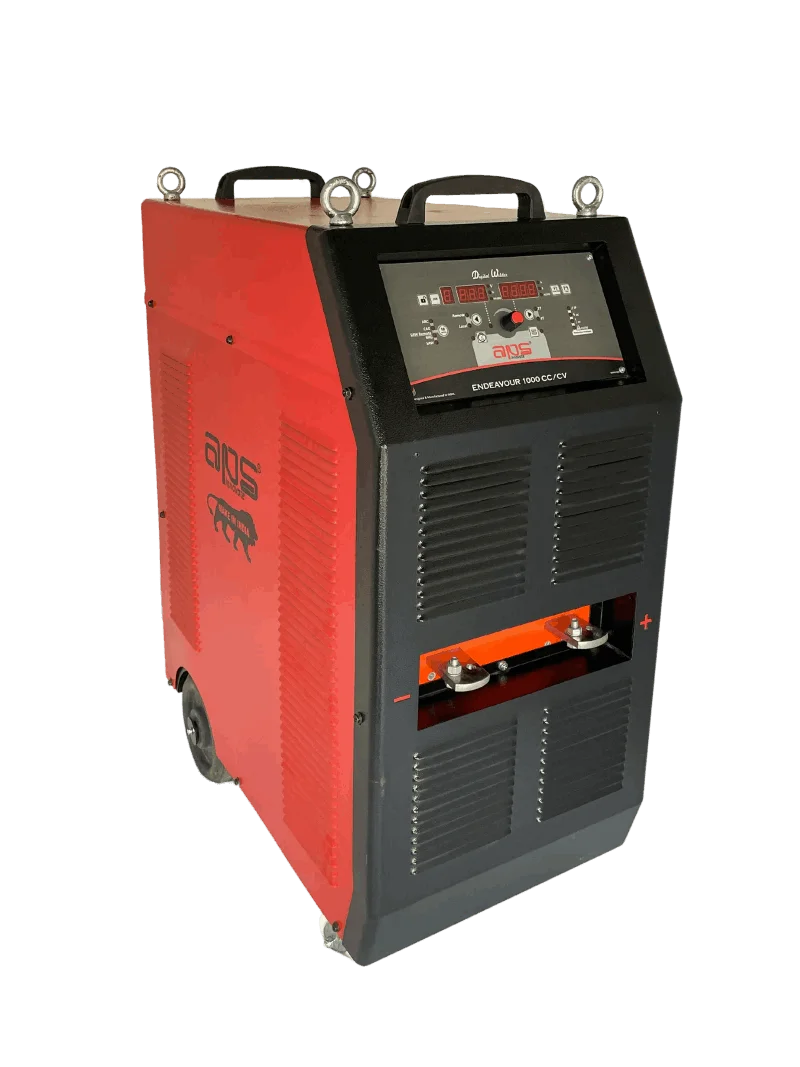

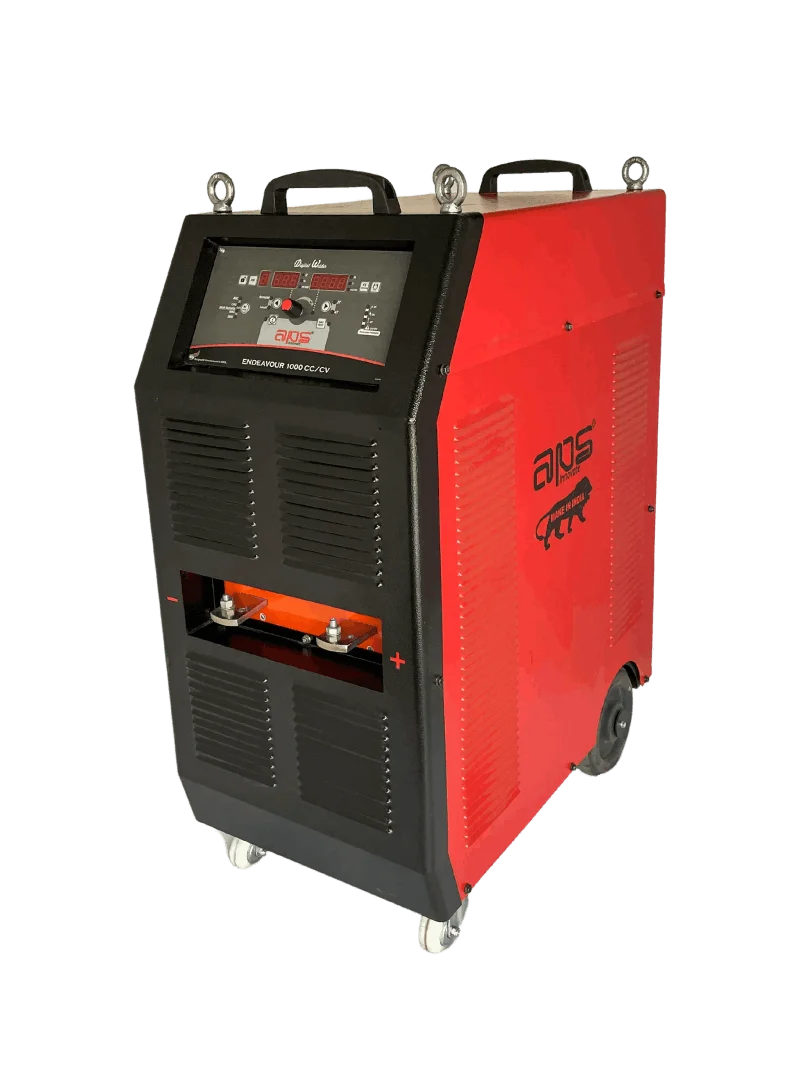

Endeavour 1000CCCV - SAW/MIG / Hard Facing / Gouging/ Arc Welder

APS Welding presents Multi-process CCCV Welding machine. This 1000Amp heavy duty beast can perform SAW/MIG/HARD-FACING/GOUGING/ARC Welding  Welding operations with easy, ensuring high quality weld output. Powered with MODULE IGBT inverter technology, this machine is rugged, reliable and yet power saving compared to conventional type welding machines.

Quick Specs:

TECHNOLOGY:

MODULE IGBT based 20KHz Full Bridge Inverter Welding Machine.

TOP FEATURES:

  • Heavy duty, Production machine with continuous Duty Cycle.
  • Easy portability, only 165 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 415VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 1000Amp
  • Output Current @ 100%: 775Amp

PROCESS:

GMAW – MIG, MAG, DC Constant Voltage Power Source.

SMAW – Stick Welder, DC Constant Current Power Source.

Features:

– Inbuilt Protections: Input Supply protections from Under Voltage, Over Voltage, Phase loss protection, Internal Over Temperature Protection, IGBT Over Current / Short Circuit protection.

– Antistick Technology: Prevents the Wire electrode from sticking to the JOB at the end of weld. Also called as Burnback.

– Electronic Inductance: Adjustable Inductance, to achieve smooth as well as rough arc characteristic as per choice of the welder.

– Crater Weld Setting: Crater Voltage and Crater Current adjustable, and can be triggered from MIG Torch itself.

– ArcForce & HotStart: Arc Force and Hot Start features in ARC Welding mode, helping out of position welding and starting arc in dirty metal.

Technical Specifications:

Input Specifications:

  • Input Voltage: 415 VAC, 3Phase, 50/60Hz (365VAC to 500VAC)
  • Primary switching device: IGBT MODULE
  • Input KVA @ 1000A: 53.5KVA
  • Input Cable: 4 core 6 sqmm with open leads, 4 meters

Output Specifications:

  • Output Current Range: 10 Amp to 1000 Amps
  • Output Current @ 60% Duty Cycle: 1000 Amps
  • Output Current @ 100% Duty Cycle: 775 Amps
  • Max Open Circuit Voltage: 85 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H

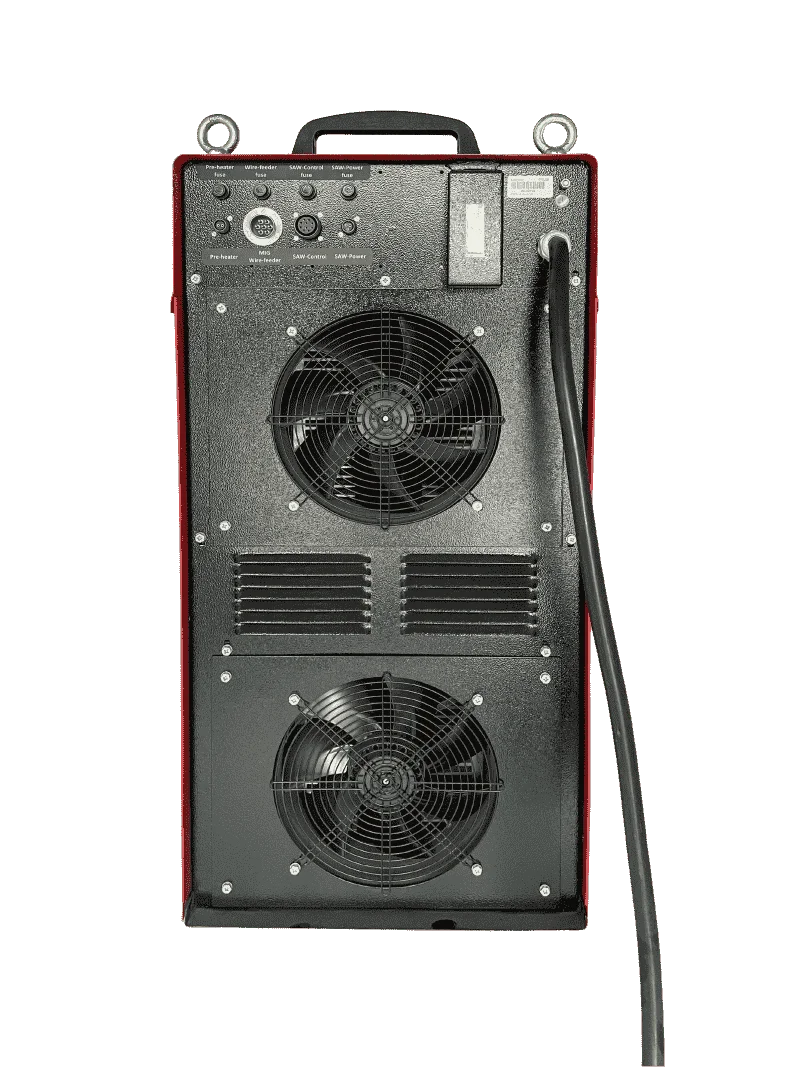

  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:1100mm x W:460mm x H:1170mm
  • Weight: 165 Kgs
  • Base: Wheels
  • Lifting Support: Handle

Other Details:

SUITABLE FOR:

  • Production Units / Manufacturing Units
  • Welding of thick metal parts like boilers, cranes, beams
  • Structural Steel welding / Heavy Engineering
  • Earth moving equipment manufacturers
  • Ship Building / Construction
  • Rail Car Manufacturing

WELDABLE MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel
  • Aluminium
  • Speciality Metals

ELECTRODE TYPE & DIAMETER:

  • Mig Wire 0.8 to 1.6mm,
  • Stick Electrode 6013, 7018 of Dia 2.0 to 6.0mm

STANDARD ACCESSORIES:

  • Welding MIG Torch:
  • Earthing Clamp with 50/70Sqmm 3mtr Cable
  • Preheater, CO2 Regulator, Flowmeter
OPTIONAL ACCESSORIES:
  • Argon Regulator
  • Aluminium Welding MIG Torch
  • Roller and Liners for Aluminium Welding

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
