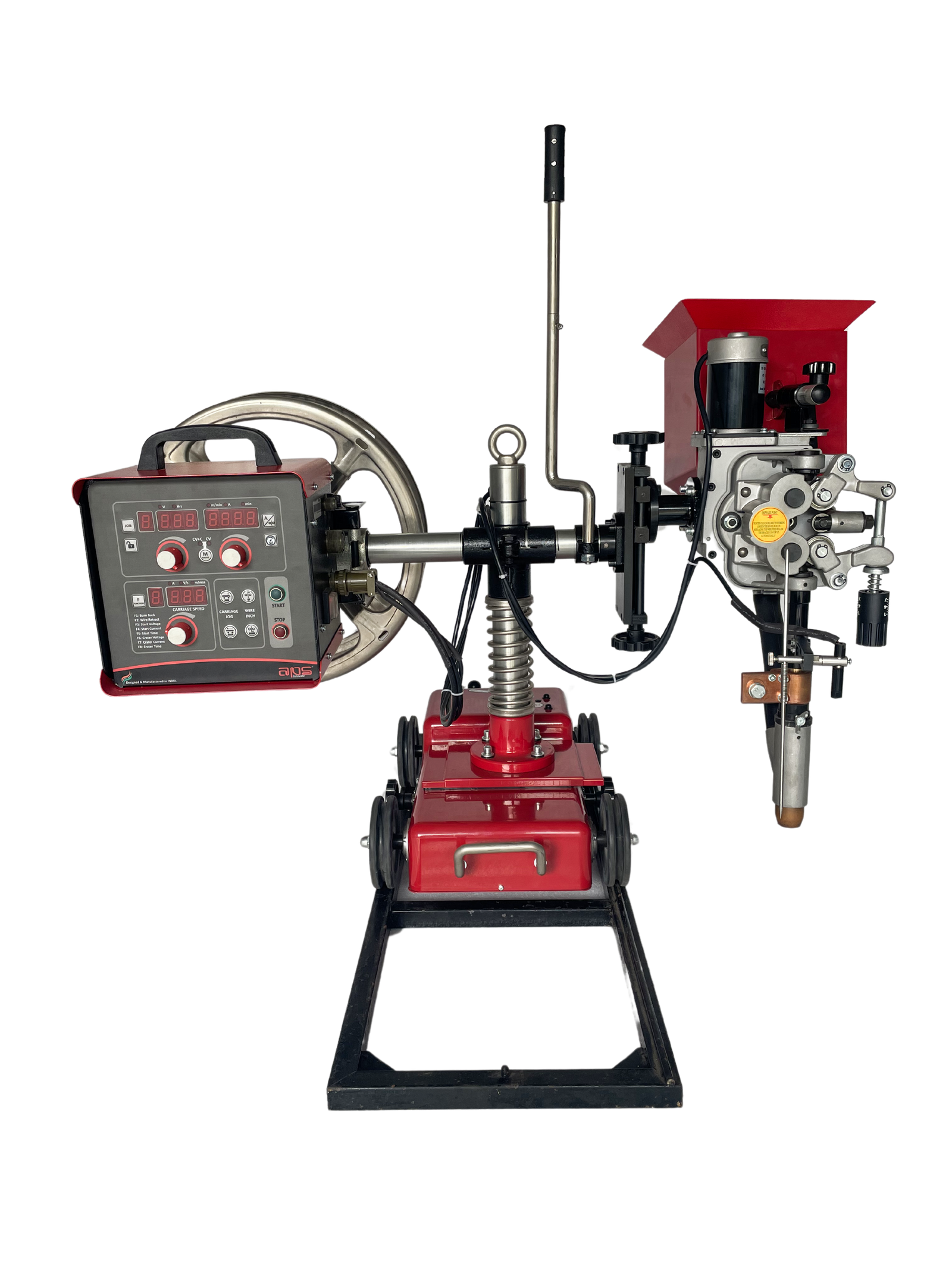

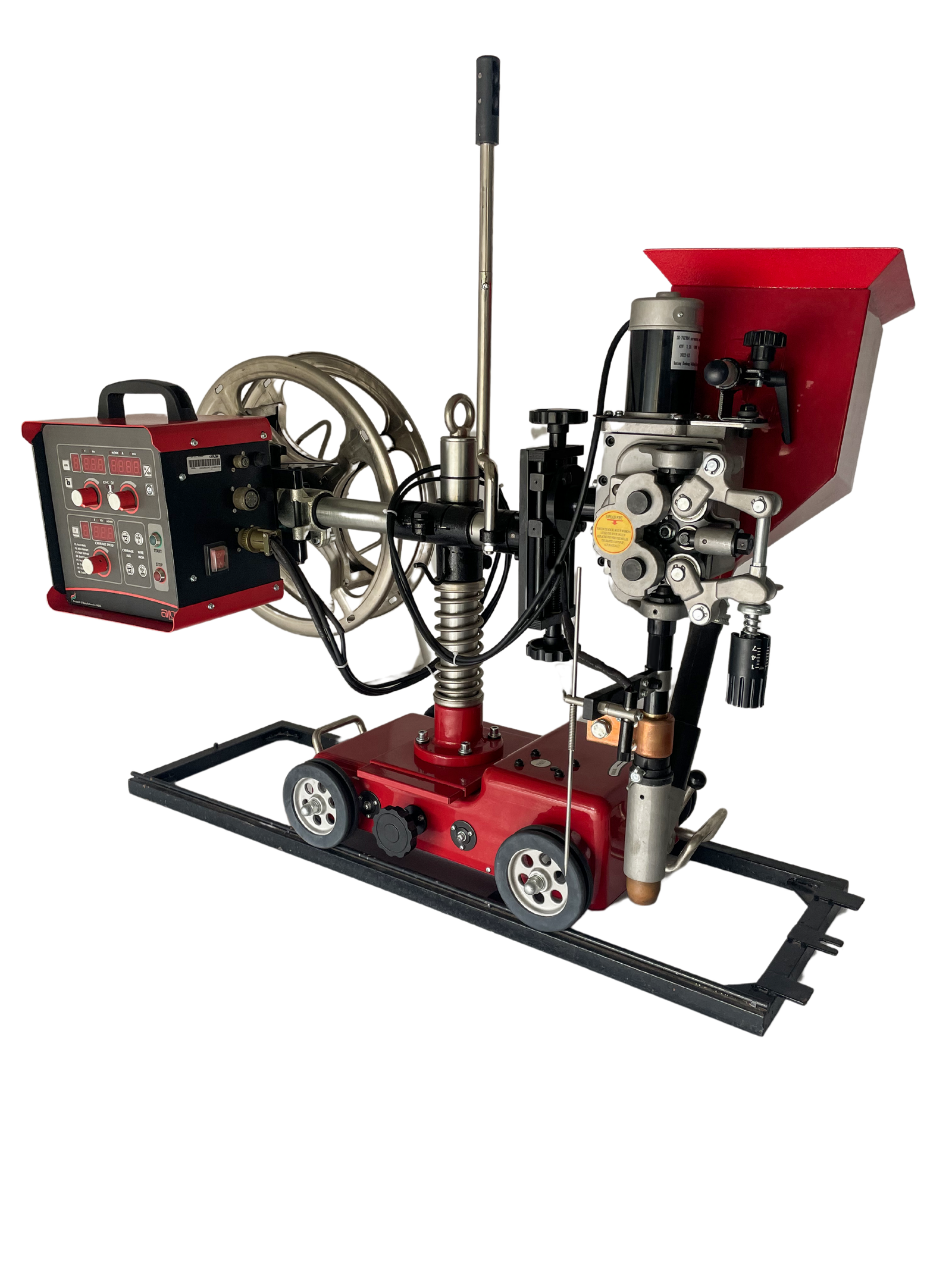

APS Welding’s SAW Welding Tractor is a heavy-duty, automatic submerged arc welding system rated at 1250 Amps. Powered by MODULE IGBT 20kHz Full Bridge Inverter technology, it supports SAW, MIG, SMAW, Hard-Facing, and Gouging — delivering high deposition rates and consistent quality on long weld seams and thick plates.
Manufactured at APS Welding’s ISO 9001:2015 certified facility in Valsad, Gujarat — 100% Made in India.
@60% Duty
@100% Duty
Metal Body
Wire: 2.4mm – 6.0mm bare wire. Deep penetration, high deposition, minimal spatter. Ideal for long flat seams on pressure vessels, tanks, beams.
Electrode: E6013 / E7018, Dia 2.0 – 6.0mm. DC Constant Current with ArcForce and HotStart — works on out-of-position and dirty metal.
High current gouging for weld removal, defect excavation, and groove cutting on heavy steel components. See also: Dedicated Gouging Machines →
| * All parameters tested at APS Welding’s ISO 9001:2015 certified facility, Valsad. Specifications subject to change without notice — contact us for the latest data sheet. | |
| Input Specifications | |
|---|---|
| Input Voltage | 415 VAC, 3-Phase, 50/60 Hz |
| Voltage Range | 365 VAC – 500 VAC |
| Input KVA @ 1250A | 53.5 KVA |
| Primary Switching Device | IGBT MODULE |
| Input Cable | 4-core 6 sqmm with open leads, 4 meters |
| Inverter Technology | MODULE IGBT 20kHz Full Bridge |
| Output Specifications | |
| Output Current Range | 10 Amps – 1250 Amps |
| Output Current @ 60% Duty Cycle | 1250 Amps |
| Output Current @ 100% Duty Cycle | 1000 Amps |
| Max Open Circuit Voltage | 85 VDC |
| Welding Processes | SAW · MIG/MAG (GMAW) · SMAW · Hard-Facing · Gouging |
| Protection & Mechanical | |
| Ingress Protection | IP21 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Dimensions (L × W × H) | 1100 mm × 460 mm × 1170 mm |
| Weight | 170 kg |
| Base / Mobility | Wheels |
| Lifting Support | Integrated Handle |
| Body | Full Metal |
| ⚠ Specifications subject to change without notice. Contact APS Welding for the latest data sheet. | |
| Consumable Type | Diameter / Grade | Material Welded | Typical Application | Current Range |
|---|---|---|---|---|
| SAW Wire + Flux | 2.0mm – 4.0mm Solid Wire | Mild Steel, Structural Steel, LAS | Plate welding, beam/column seams, pressure vessel shells | 400A – 1250A |
| MIG Wire (GMAW) | 0.8mm – 1.6mm | Mild Steel, Stainless Steel, Aluminium | Structural fabrication, general production welding | 80A – 500A |
| Stick Electrode E6013 | 2.0mm – 5.0mm | Mild Steel | Tack welding, light structural, maintenance repair | 40A – 200A |
| Stick Electrode E7018 | 2.5mm – 6.0mm | Structural / Low-Hydrogen Steel | Heavy structural joints, pressure-critical welds | 80A – 280A |
| Hard-Facing Wire | 1.2mm – 1.6mm | Carbon Steel Base / Wear Alloy Overlay | Bucket teeth, mill rolls, crusher liners | 150A – 400A |
| Material | Process Suitability | Typical Application |
|---|---|---|
| Mild Steel / Structural Steel | SAW, MIG, SMAW | Beams, frames, pressure vessels, tanks |
| Carbon Steel | SAW, SMAW | Heavy machinery, cranes, earth-moving equipment |
| Stainless Steel | MIG, SMAW | Chemical equipment, food industry, process piping |
| Aluminium | MIG (with Alu torch) | Shipbuilding components, aerospace structures |
| Specialty Metals | Hard-Facing | Wear surface rebuild, bucket edges, crusher parts |
The SAW Tractor is a heavy-production automatic system. It excels at long seam welding on thick plates — but is not designed for positional or light-gauge work.
High-frequency switching delivers stable arc at 85%+ efficiency — significantly lower power bills versus conventional transformer-based SAW machines.
Constant Current for SMAW/SAW and Constant Voltage for MIG/MAG/Hard-Facing — one machine covers your entire production floor.
Under/over voltage, phase loss, internal over-temperature, and IGBT over-current / short-circuit protection — machine safeguards itself automatically.
Prevents wire electrode from sticking to the job at weld end — reduces downtime, protects the torch, and maintains consistent bead finish.
Adjustable inductance lets the welder dial between smooth and rough arc characteristics — critical for different wire types and joint configurations.
Programmable crater voltage/current (triggerable from torch) plus ArcForce and HotStart for reliable out-of-position starts on dirty metal.
Long seam and girth welds on thick-walled vessels and heat exchangers
Bridge girders, crane beams, column-and-beam heavy fabrication
Hull plate welding, deck stiffeners, longitudinal seam production
Longitudinal and circumferential seam welding of tower cans
Oil, gas, and water pipeline long seam and girth welding
Wagon body, bogie frame, and undercarriage fabrication
Excavator arm, bucket, and chassis heavy plate fabrication
Mining equipment, industrial machinery frames, large-scale production units
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
| Accessory | Model | Specification | Link |
|---|---|---|---|
| MIG Welding Torch | Heavy Duty | Rated for 1250A multi-process operation | View → |
| Earthing Clamp + Cable | EC Heavy | 50/70 sqmm, 3-meter heavy-duty copper cable | View → |
| CO₂ Regulator + Flowmeter | Preheater Kit | For MIG/MAG shielding gas — CO₂ and mixed gas | View → |
| Argon Regulator | Optional | For stainless steel and specialty metal MIG welding | View → |
| Aluminium Welding Torch | Alu Torch | Push-pull torch + PTFE liner for aluminium wire feeding | View → |
| Aluminium Rollers & Liners | Alu Kit | U-groove rollers + PTFE-lined conduit for aluminium wire | View → |
| Product / Page | Category | Process | Why It’s Related to Endeavour 1000 | Link |
|---|---|---|---|---|
| Welding Machines | Equipment | MIG / MAG GMAW | Multi-process CCCV power sources with similar CV output mode used in MIG welding applications. | View → |
| TIG Welders (GTAW) | Equipment | TIG / GTAW | Used for root pass TIG welding before SAW fill passes in pressure vessel and pipe fabrication. | View → |
| SMAW / ARC Welders | Equipment | SMAW / Stick | Direct process overlap with SMAW capability using E6013 / E7018 electrodes up to Ø 6 mm. | View → |
| Carbon Arc Gouging (CAG) | Equipment | CAG / Gouging | Supports weld preparation, groove cutting, and defect removal on heavy fabrication plates. | View → |
| All SAW Machines | Equipment | SAW | Compare submerged arc welding models by output capacity, application, and duty cycle. | View → |
| Multi Operator Welders | Equipment | SMAW / Multi-arc | Ideal for fabrication shops requiring multiple welding stations from a single power source. | View → |
| Plasma Cutting Equipment | Equipment | Plasma Cutting | Used for plate cutting and edge preparation before SAW long-seam and heavy plate welding. | View → |
SAW welding tractor is used for automatic submerged arc welding of long seams and thick metal plates in industrial fabrication.
Shipbuilding, pressure vessel manufacturing, structural steel fabrication, and heavy engineering industries commonly use SAW welding tractors.
High deposition rate, deep penetration, minimal spatter, and improved productivity.
Yes, submerged arc welding is ideal for thick plate welding applications.
