@60% Duty
@100% Duty
Weight
Ensures smooth and reliable performance even on DG sets and fluctuating site power conditions — ideal for field and workshop use.
Supports both Gas Tungsten Arc Welding (GTAW) and Stick Welding (SMAW/MMAW) for versatile single-phase applications.
Compact and lightweight design for easy on-site handling, fieldwork, and workshop mobility without sacrificing output power.
Durable complete metal body construction for tough industrial environments, fabrication shops, and demanding site conditions.
| Input Specifications | |
|---|---|
| Input Voltage | 230 VAC, 1-Phase, 50/60 Hz |
| Input Range | 170 VAC – 280 VAC |
| Input KVA @ 250 A | 9.3 KVA |
| Switching Device | IGBT Discrete |
| Input Cable | 3-core 2.5 sq mm with Plug, 3.0 metres |
| Output Specifications | |
| Current Range | 10 A – 250 A |
| Current @ 60% Duty | 250 A |
| Current @ 100% Duty | 190 A |
| Max OCV | 85 VDC |
| Protection & Insulation | |
| Ingress Protection | IP21 |
| Insulation Class | Class H |
| Cooling Type | Forced Air |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 490 × 185 × 355 mm |
| Weight | 15 kg |
| Base | Rubber Foot |
| Lifting | Handle |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
| Category | Type | Specification | Details |
|---|---|---|---|
| Electrode Type | E6013 | 1.6mm – 3.15mm | Mild Steel | 40A – 130A | General fabrication, sheet metal, light structural work |
| E7018 | 2.5mm – 3.15mm | Mild / Structural Steel | 80A – 160A | Structural, maintenance, load-bearing joints | |
| TIG Wire (ER308L / 316L) | 1.6mm – 2.4mm | Stainless Steel | 60A – 210A | SS fabrication, food equipment, chemical industry | |
| TIG Wire (ER70S-6) | 1.6mm – 2.4mm | Mild / Carbon Steel | 50A – 250A | Precision pipe welding, thin sheet, precision joints |

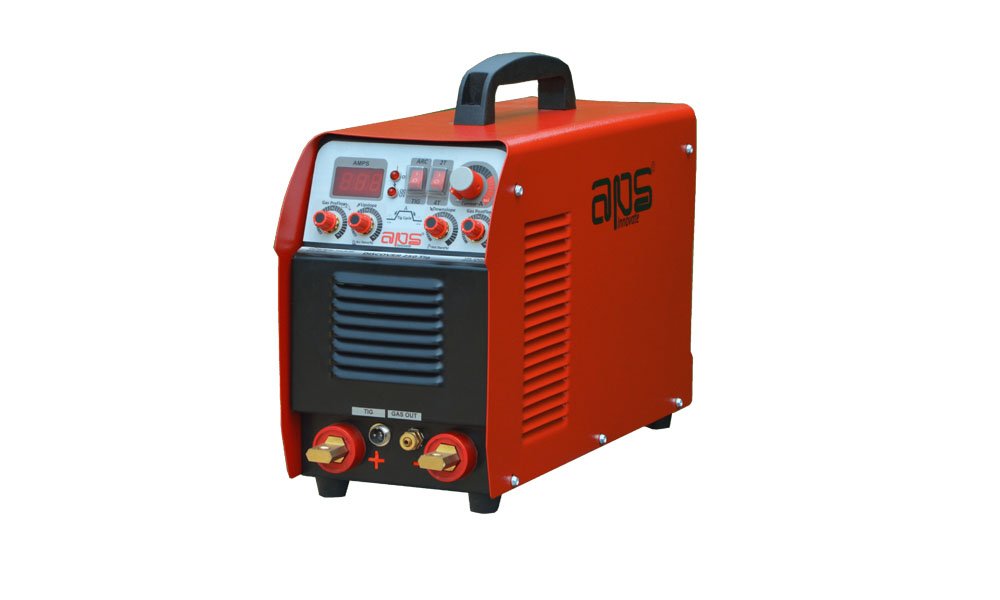

Discover 250TIG Welding Machine – APS Welding Machine presents the Portable, Powerful, and Productive Stick Electrode TIG Welding Machine. This small wonder weighs only 15 Kg and yet does perform the toughest jobs with ease.
| Accessories | Model | Specification | Link |
|---|---|---|---|
| Earthing Clamp | EC20 | Heavy-duty clamp with welding cable 16 sq mm for stable grounding and safe welding operation | View EC20 → |
| Welding Cable | 16 sq mm | Flexible copper cable suitable for light to medium-duty welding applications | View Cables → |
| TIG Torch | Gas Cooled | Ergonomic gas-cooled torch for precise TIG welding with efficient heat dissipation | View Torch → |
| Argon Regulator | — | Ensures stable gas pressure control for consistent TIG welding performance | View Regulator → |
| Flowmeter | — | Accurate gas flow measurement for controlled shielding gas usage | View Flowmeter → |
The Discover 250 TIG’s balance of 250A output, single-phase versatility, and dual-process capability makes it the preferred choice across these sectors:
Trusted Indian welding machine manufacturer
Excellent Arc Ignition & Control
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
The Discover 250 TIG’s balance of 250A output, single-phase versatility, and dual-process capability makes it the preferred choice across these sectors:
Minimal Spatter & Rework
The Discover 250 TIG welding machine is suitable for welding stainless steel, mild steel, and alloy steel, making it ideal for precision fabrication and industrial applications.
Yes, the Discover 250 is a dual-function machine that supports TIG (DC) welding as well as MMA (Stick) welding, offering flexibility for different welding requirements.
Absolutely. With its high duty cycle and advanced IGBT inverter technology, the Discover 250 is designed for continuous and heavy-duty industrial operations.
The machine operates on standard industrial power supply (single or three phase, as applicable). Exact power requirements may vary based on the model configuration.
Yes, the Discover 250 TIG welding machine is highly energy efficient, consuming less power compared to conventional welding machines while delivering stable arc performance.
Yes, the Discover 250 provides excellent arc control and smooth ignition, making it suitable for thin sheet metal and precision welding jobs.
Yes, APS Welding offers pan-India service support along with easy availability of spare parts and technical assistance.
Yes. APS Welding machines are manufactured in an ISO 9001:2015 certified facility, are MSME registered, and CE compliant (for export models), ensuring safety and reliability.
The machine is widely used in industrial fabrication, pipe welding, automotive workshops, maintenance & repair jobs, and stainless steel fabrication.
Basic TIG welding knowledge is recommended. However, the Discover 250 is user-friendly and suitable for both experienced welders and trained technicians.
