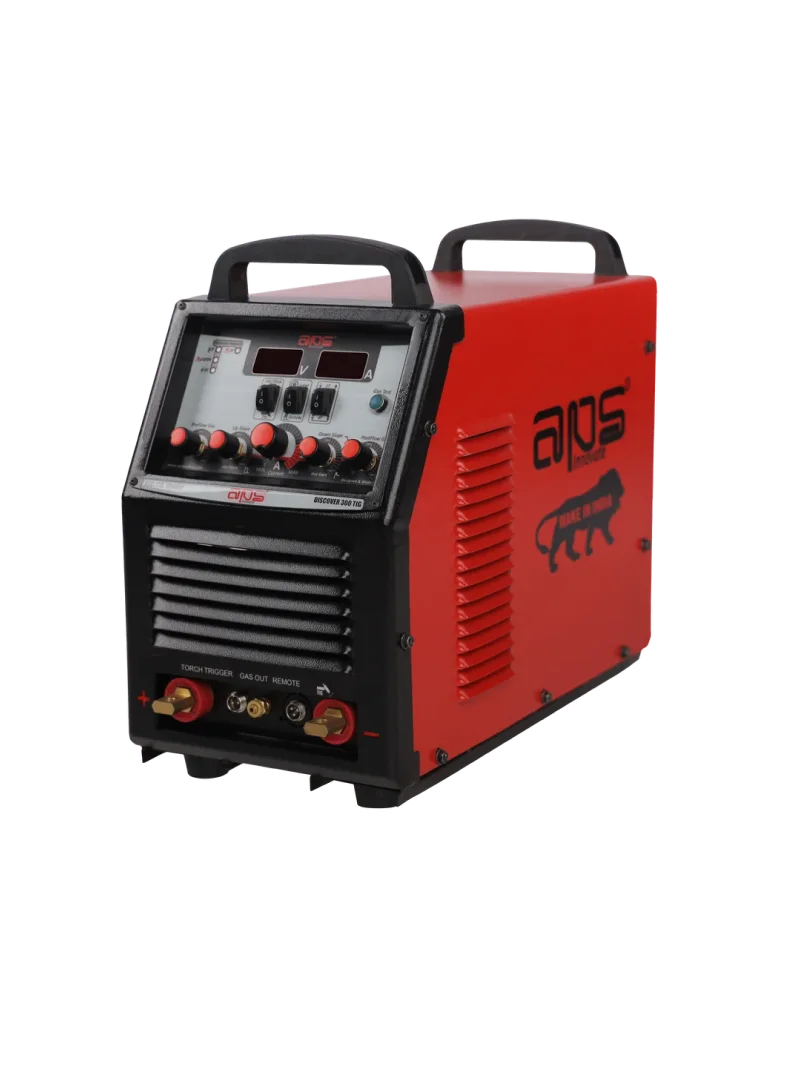

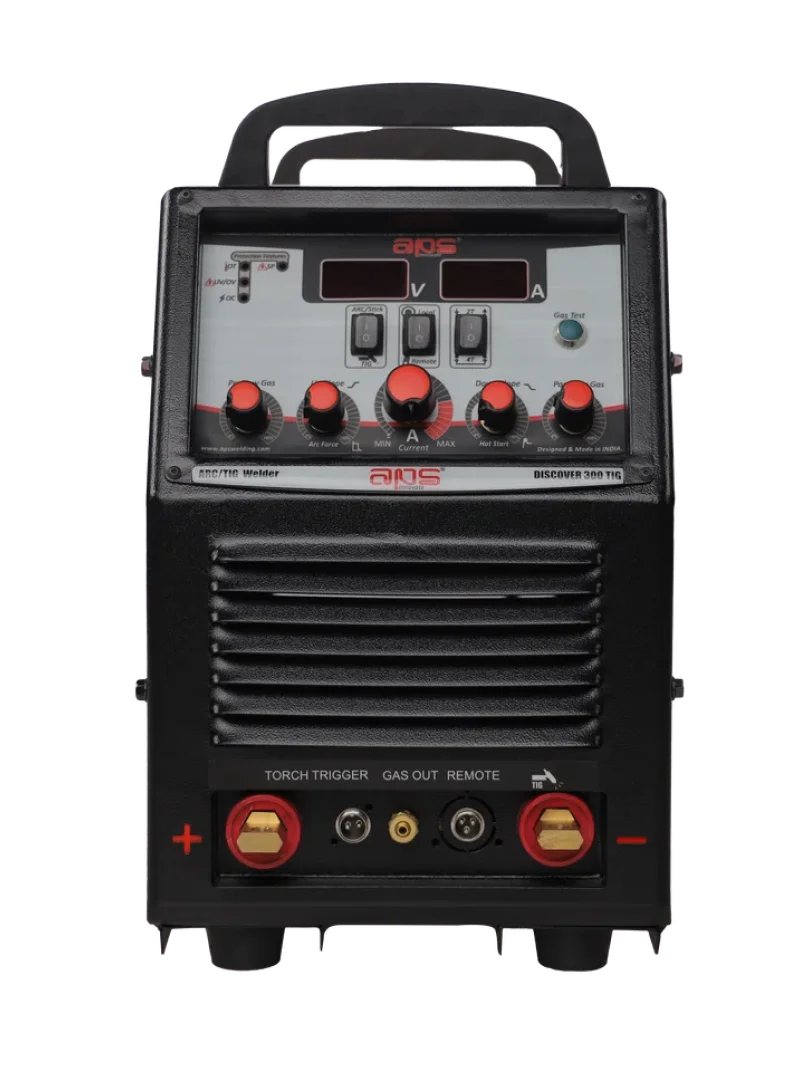

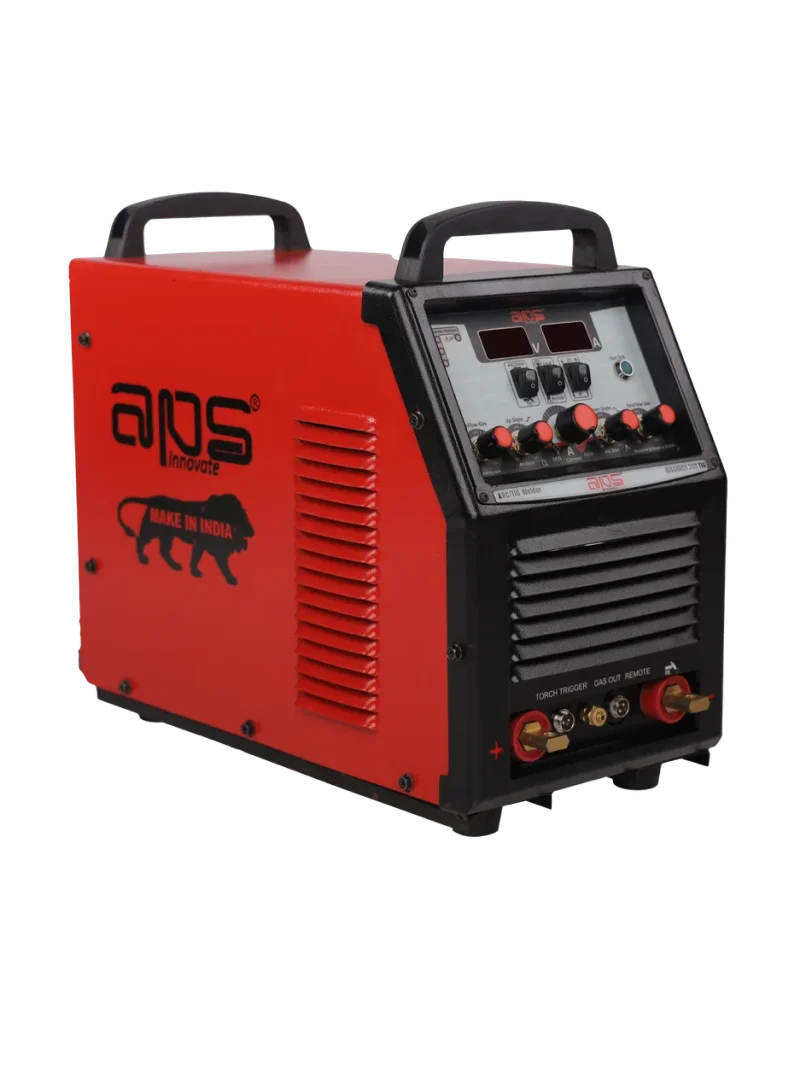

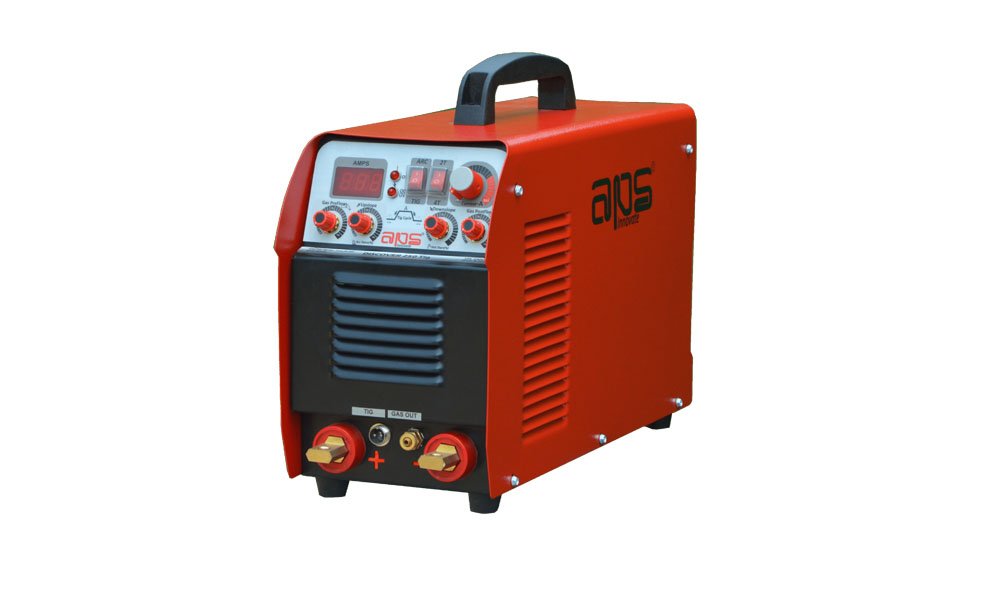

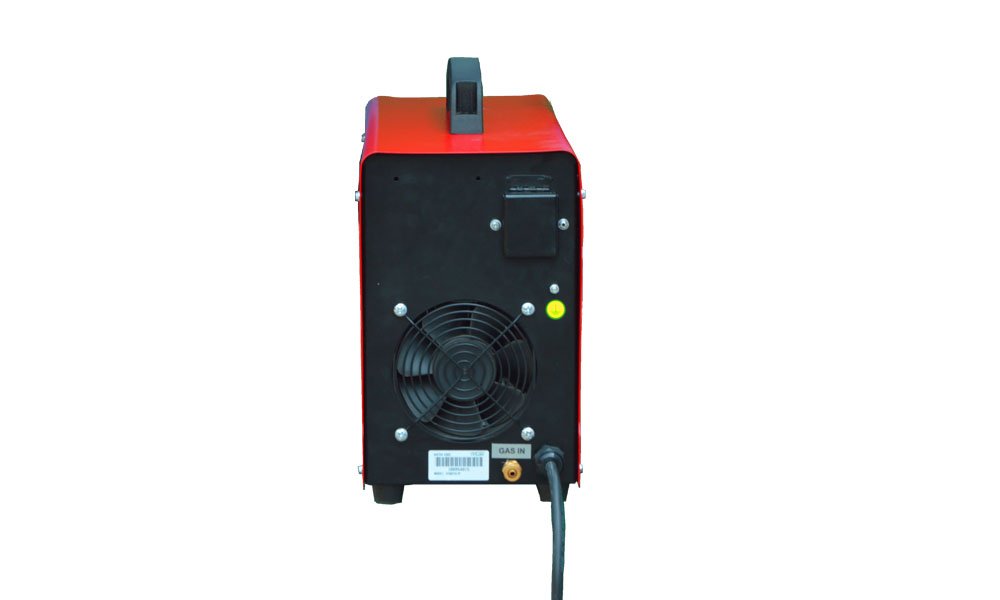

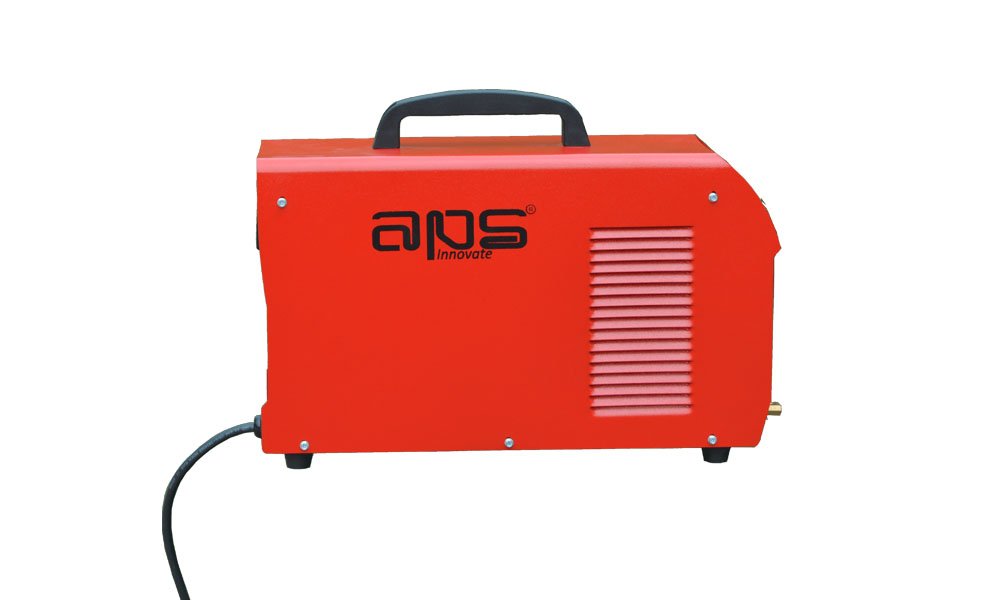

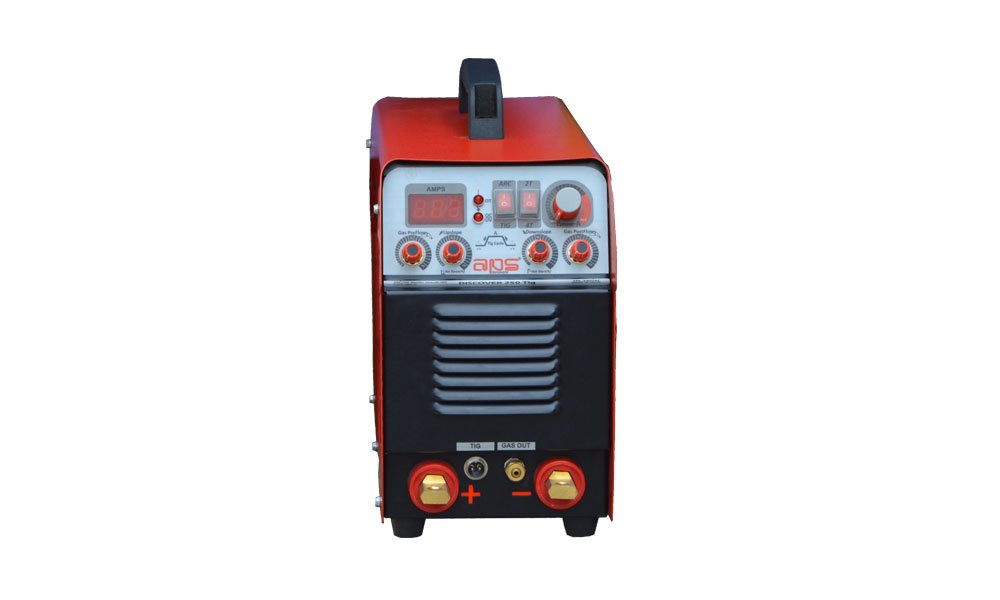

Discover 250 TIG - TIG / Stick Welder (GTAW / SMAW)

Discover 250TIG Welding Machine – APS Welding Machine presents the Portable, Powerful, and Productive Stick Electrode TIG Welding Machine. This small wonder weighs only 15 Kg and yet does perform the toughest jobs with ease.

Discover 250 TIG
Discover 250 TIG
Discover 250 TIG

Quick Specs:

TECHNOLOGY:

Discrete IGBT based 30KHz Full Bridge Inverter Welding Machine.

TOP FEATURES:

  • Best for site conditions, thanks to wide input voltage range from 170VAC to 280VAC.
  • Easy portability, only 15 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 230VAC, 1 Phase, 50/60Hz.
  • Output Current @ 60%: 250Amp
  • Output Current @ 100%: 190Amp

PROCESS:

SMAW – Stick Welder, DC Constant Current Power Source.

GTAW – Gas Tungsten Arc welding Constant Current Power Source.

Download PDF
Request Quote

Discover 250 TIG - Technical Specifications:

Input Specifications:

  • Input Voltage: 230 VAC, 1Phase, 50/60Hz (150VAC to 300VAC)
  • Primary switching device: IGBT Discrete
  • Input KVA @ 250A: 9.3KVA
  • Input Cable: 3 core 2.5 sqmm with Plug, 3.0 meters

Output Specifications:

  • Output Current Range: 10 Amp to 250 Amps
  • Output Current @ 60% Duty Cycle: 250 Amps
  • Output Current @ 100% Duty Cycle: 190 Amps
  • Max Open Circuit Voltage: 85 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:490mm x W:185mm x H:355mm
  • Weight: 15 Kgs
  • Base: Rubber Foot
  • Lifting Support: Handle

Other Details:

SUITABLE FOR:

  • DIY Enthusiasts / Hobbyist
  • Farm & Agricultural Tools Repair
  • Maintenance & Repair Works
  • Customizing & Restoration Welding

WELDABLE MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel

ELECTRODE TYPE & DIAMETER:

  • 6013, 7018
  • 1.6 mm, 2.0 mm, 2.5 mm, 3.15 mm

JOB THICKNESS:

  • 1.0 mm TO 6.0 mm

STANDARD ACCESSORIES:

  • Earthing Clamp: EC20 with welding cable 16 sqmm
  • TIG TORCH : Gas Cooled
  • Argon Regulator
  • Flowmeter

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
