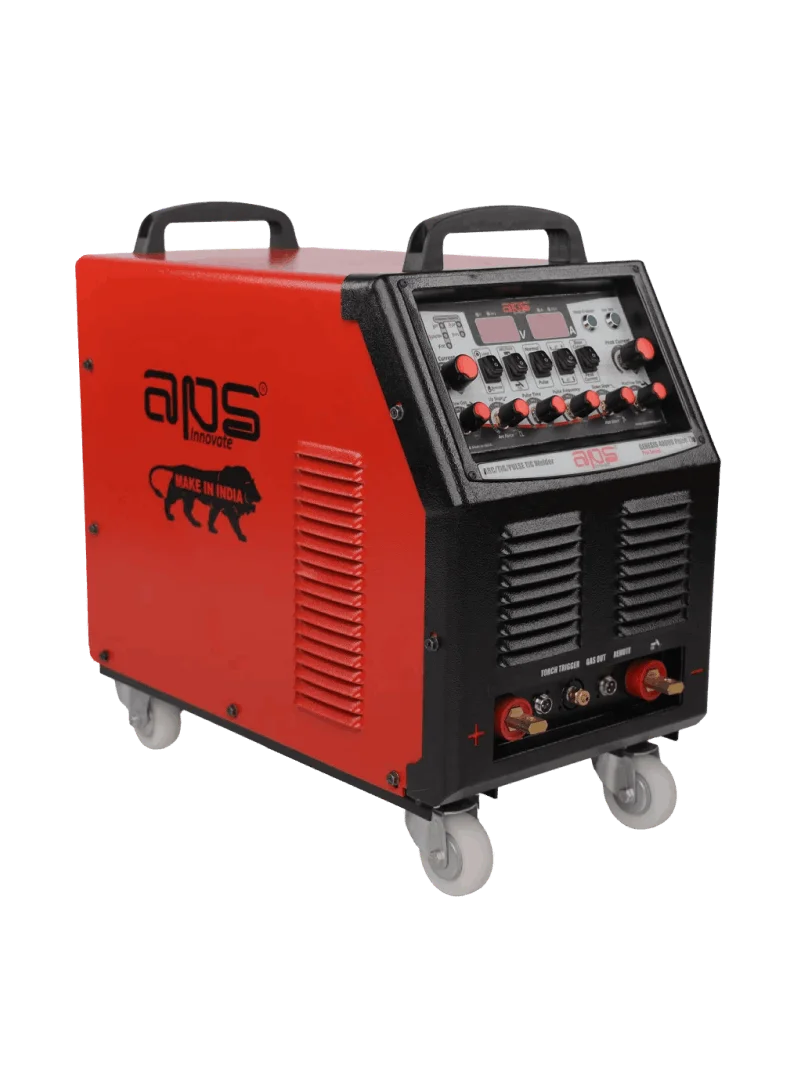

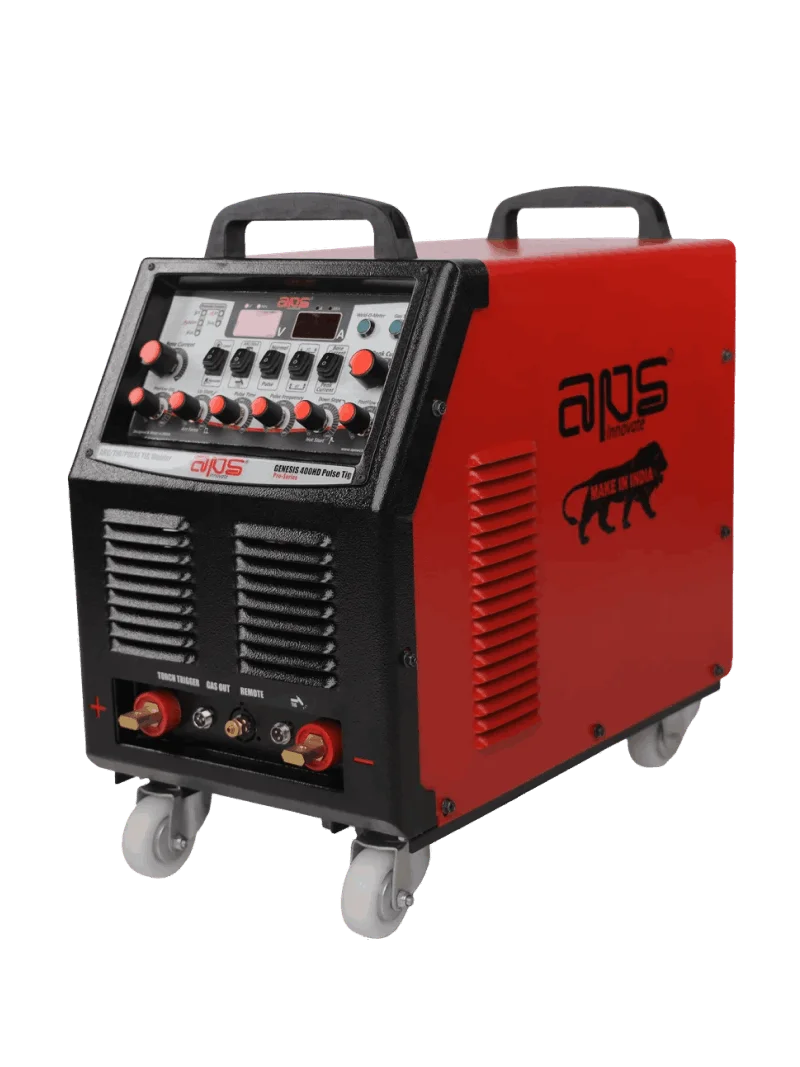

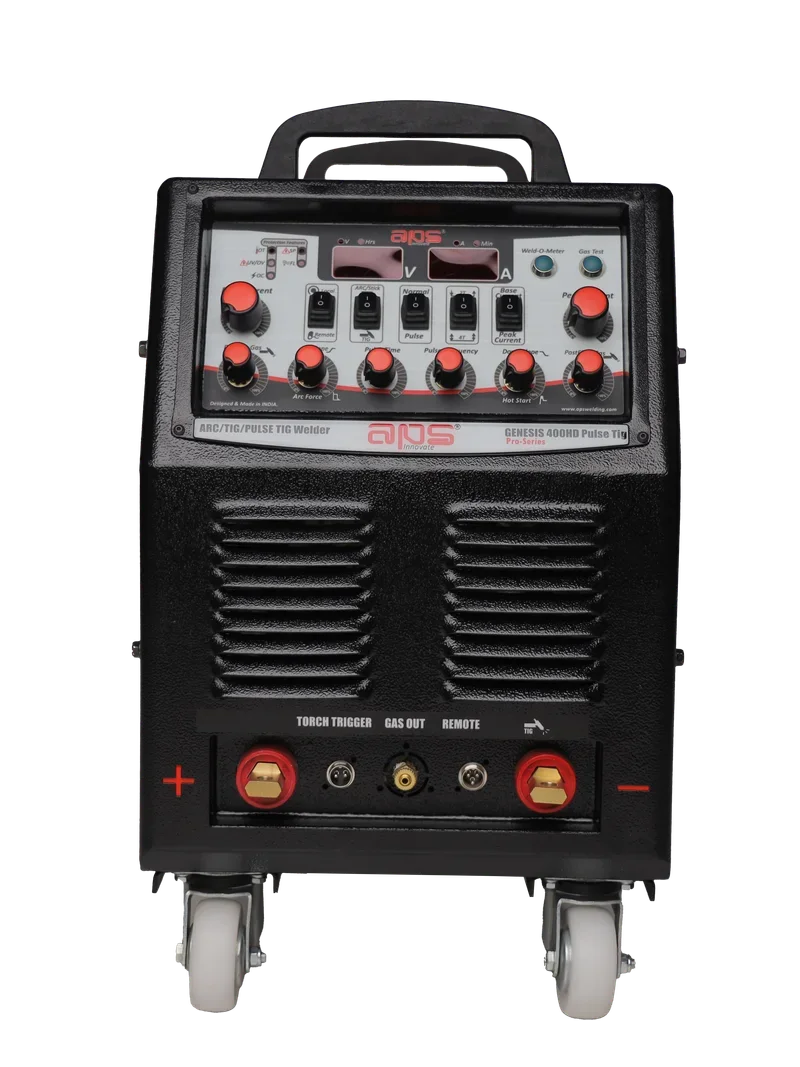

Genesis 400 HDPulseTIG - TIG / Stick Welder (GTAW / SMAW)

APS Welding presents the Portable, Powerful and Productive Stick Electrode TIG Welding Machine. This small wonder weighs only 47 Kg and yet does perform the toughest jobs with ease.

Quick Specs:

TECHNOLOGY:

Discrete IGBT based 30KHz Full Bridge Inverter Welding Machine.

TOP FEATURES:

  • Best for site conditions, thanks to wide input voltage range from 330VAC to 500VAC.
  • Easy portability, only 50.5 & 96.8 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 330VAC-500VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 400Amp
  • Output Current @ 100%: 310Amp

PROCESS:

SMAW – Stick Welder, DC Constant Current Power Source.

GTAW – Gas Tungsten Arc welding Constant Current Power Source.

Download PDF
Request Quote

Technical Specifications:

Input Specifications:

  • Input Supply: 330-500VAC, 3Ph, 50/60Hz, Generator Compatible
  • Input @ 400A / 36V: 17.8KVA/ 22.7HP, 25A@415V
  • Input @ 310A/ 32V: 12.5KVA / 15.8HP, 17.3A@415V
  • Input @ 250A/ 30V: 9.3KVA / 11.8HP, 13A@415V

Output Specifications:

  • Output Current Range: 10A to 400A
  • Duty Cycle @ 60%: 400A / 36V
  • Duty Cycle @100%: 310A / 32V
  • Open Circuit Voltage(OCV): 75V-95V DC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions (LxWxH): 650X345X600mm
    ( Power source with wheels)
  • Weight: 50.5 Kg
  • Dimensions (LxWxH): 1090X400X1050mm( Power source + cooling unit + trolley)
  • Weight: 96.8 Kg
  • Base: Wheels
  • Lifting Support: Handle 4 core 2.5 sqm, 4 meters, open leads.

Other Details:

SUITABLE FOR:

  • DIY Enthusiasts / Hobbyist
  • Farm & Agricultural Tools Repair
  • Maintenance & Repair Works
  • Customizing & Restoration Welding

WELDABLE MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel

ELECTRODE TYPE & DIAMETER:

  • 6013, 7018
  • 1.6 mm, 2.0 mm, 2.5 mm, 3.15 mm

JOB THICKNESS:

  • 1.0 mm TO 6.0 mm

STANDARD ACCESSORIES:

  • Earthing Clamp: EC20 with welding cable 16 sqmm
  • TIG TORCH : Gas Cooled/Water Cooled
  • Argon Regulator
  • Flowmeter

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
